Cat6A S/FTP COPPER Low Smoke LSZH 10 Gigabit Network Cable Reel 100m

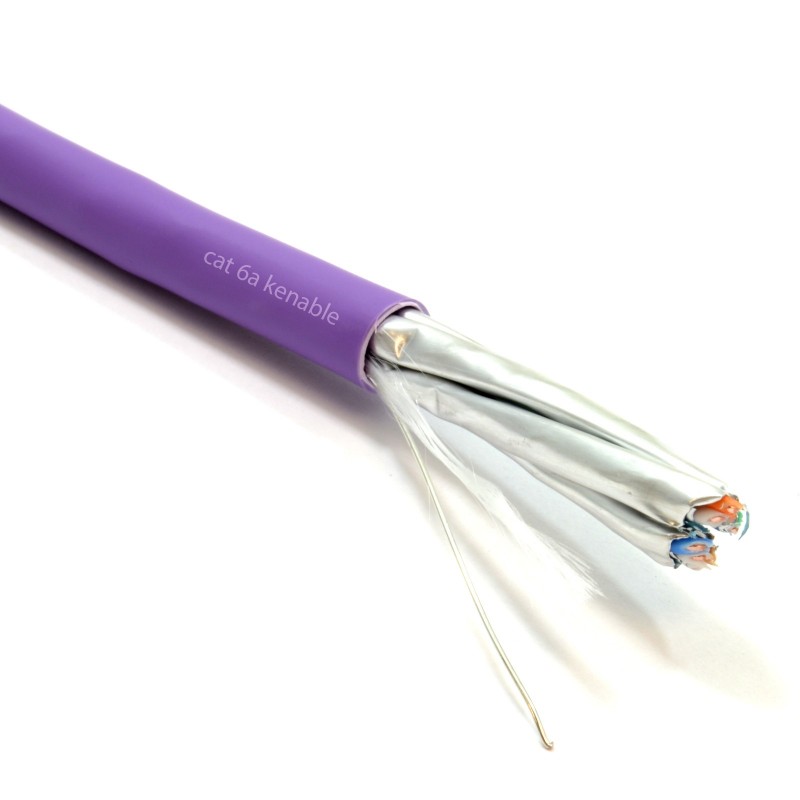

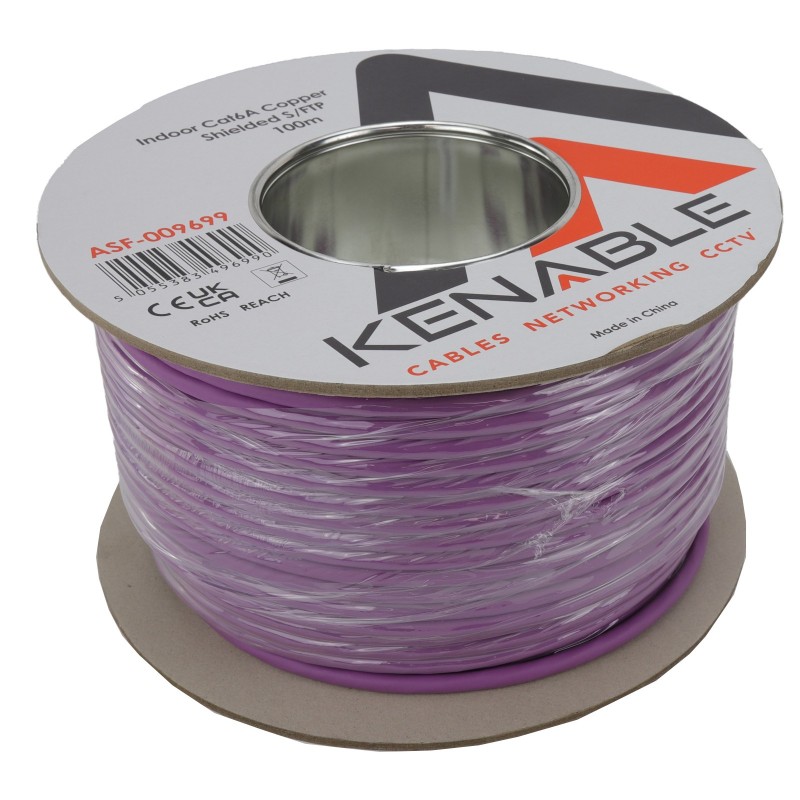

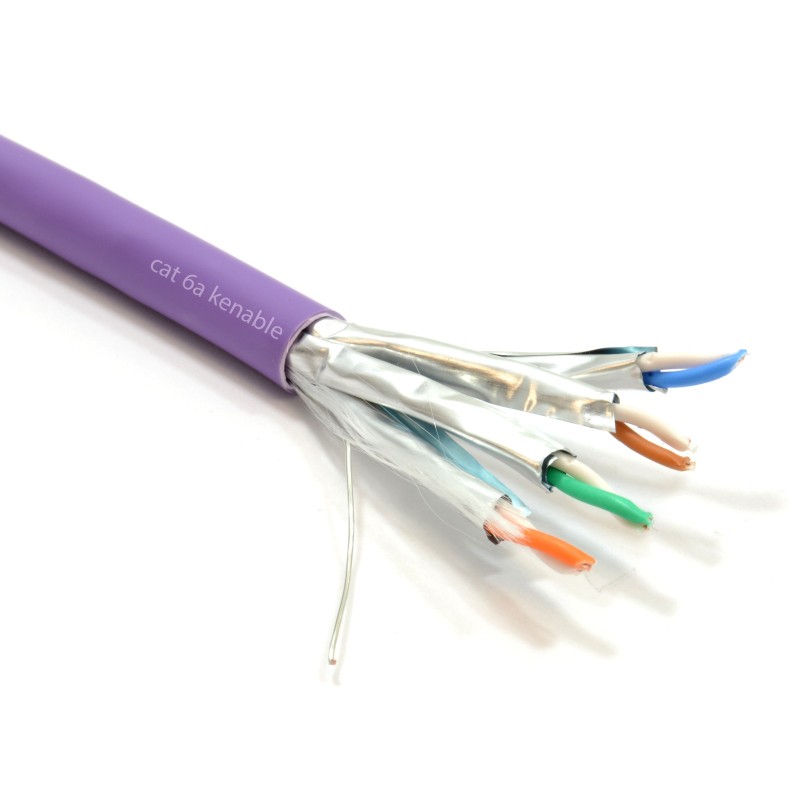

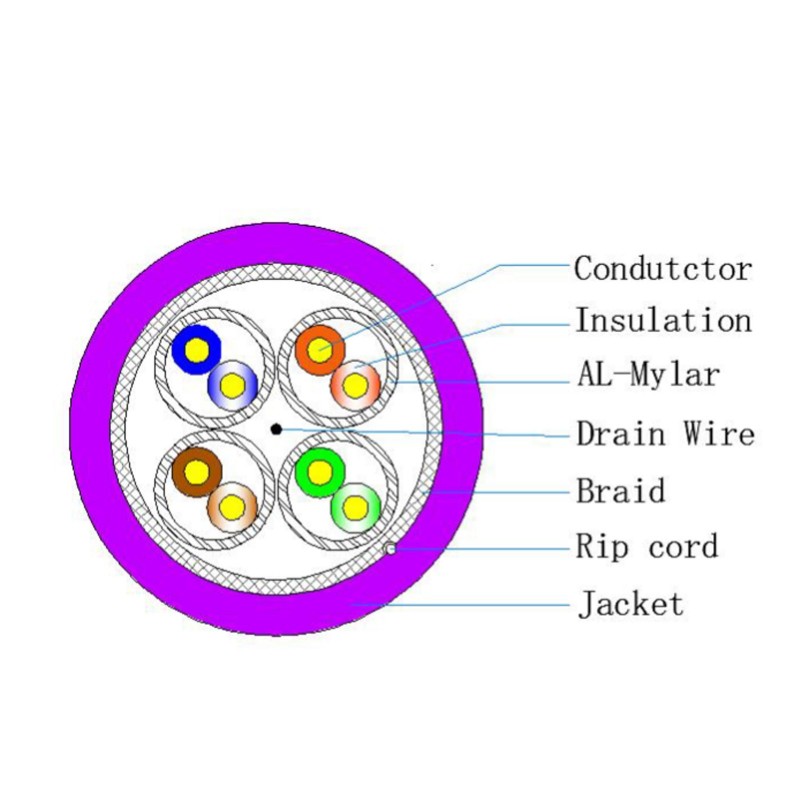

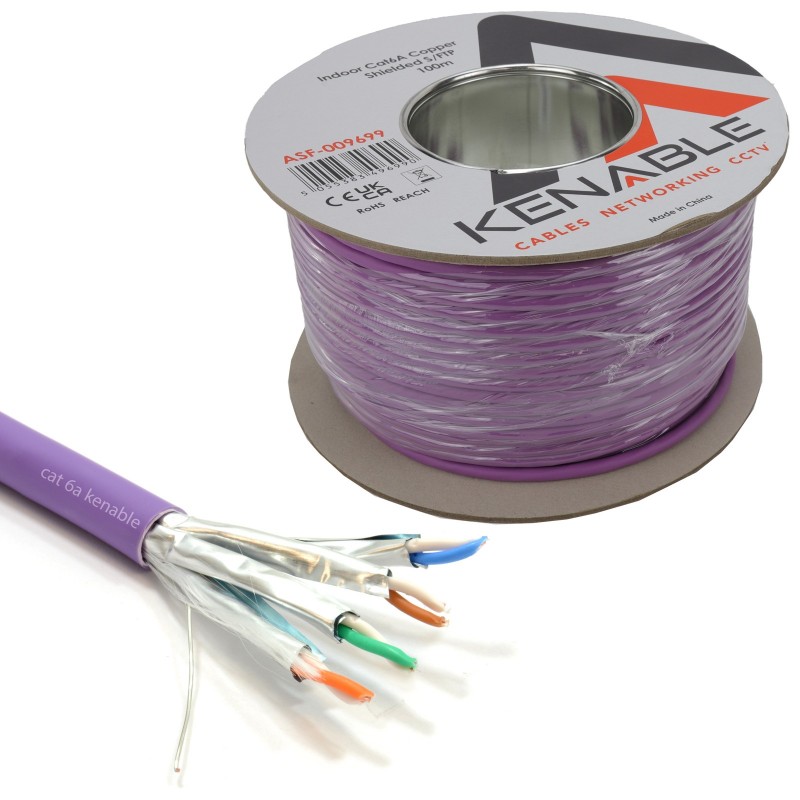

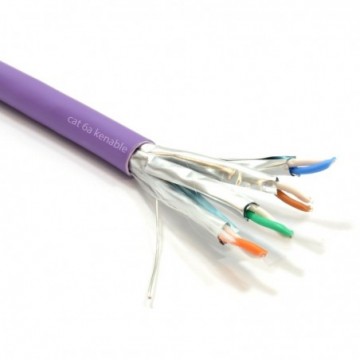

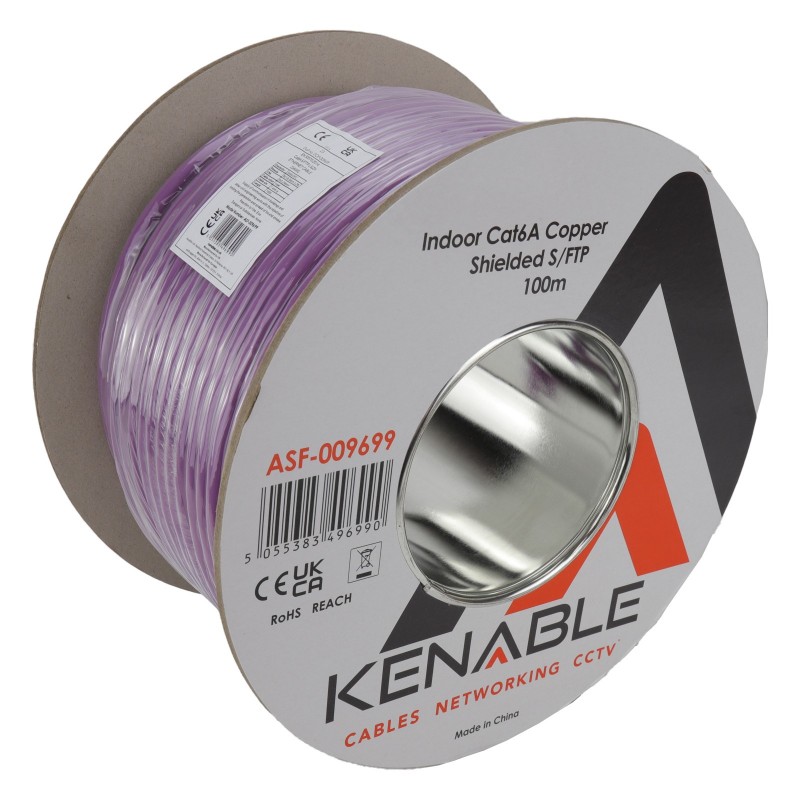

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provides protection from any pair or alien crosstalk. Supplied on a reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications within noisy environments.

Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
AWG 23 oxygen free solid copper conductor


Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard


S/FTP-CAT6A
Conductor Solid OFC
Strands 8 x 1-0.565mm 2per cent
Conductor CSA 8 x 0.251mm2
Cable : diameter 7.5mm
Screen Aluminium foil
Insulation PE 0.385mm thickness
Sheath LSZH 0.55mm thickness
Capacitance 6.6nF - 100m
DC resistance at 20oC -7.8 Ohms/100m
Impedance (1 to 250MHz) 100 15 Ohms
Impedance (250 to 500MHz) 100 22 Ohms
