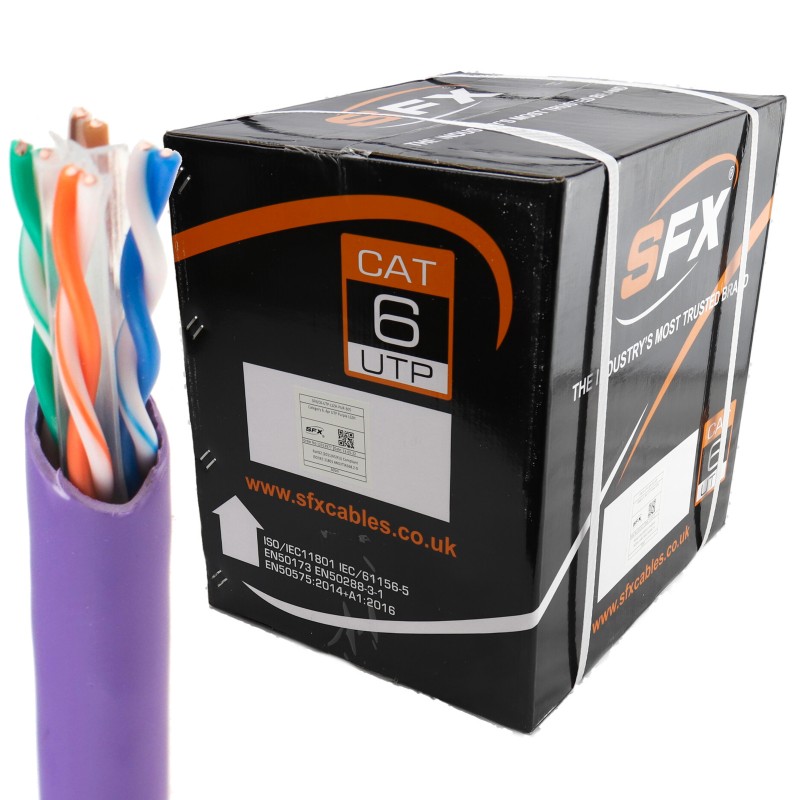

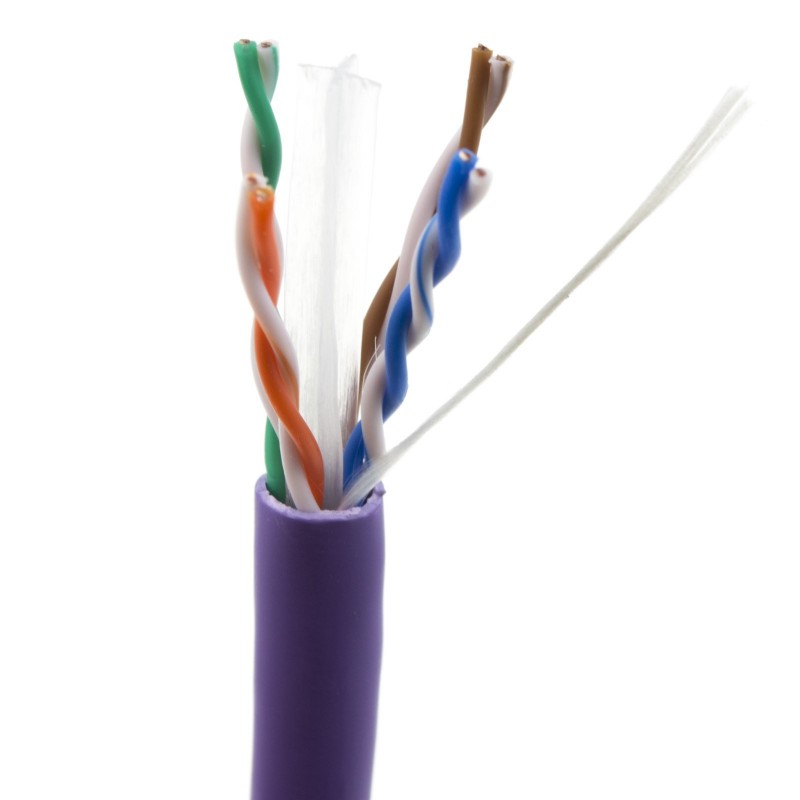

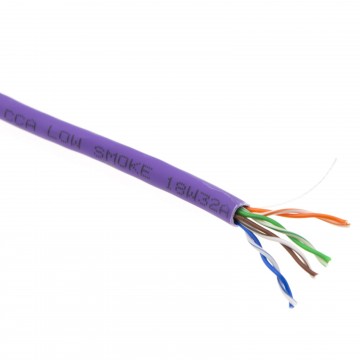

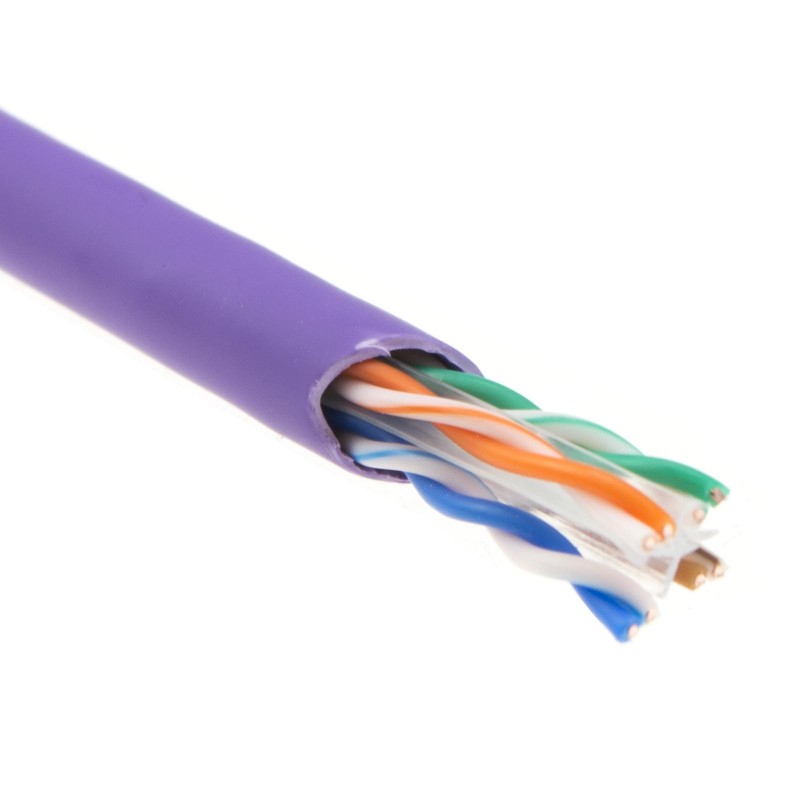

Low Smoke Zero Halogen network cables are cables that emit very limited smoke and zero halogen when exposed to high sources of heat and are part of building regulations especially when installing cables in schools and other government buildings.

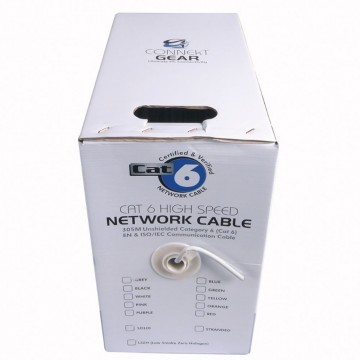

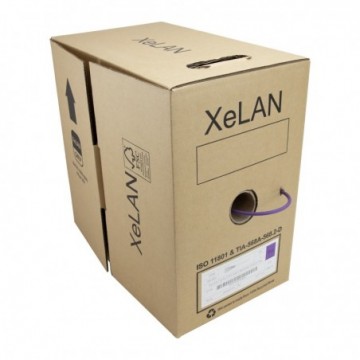

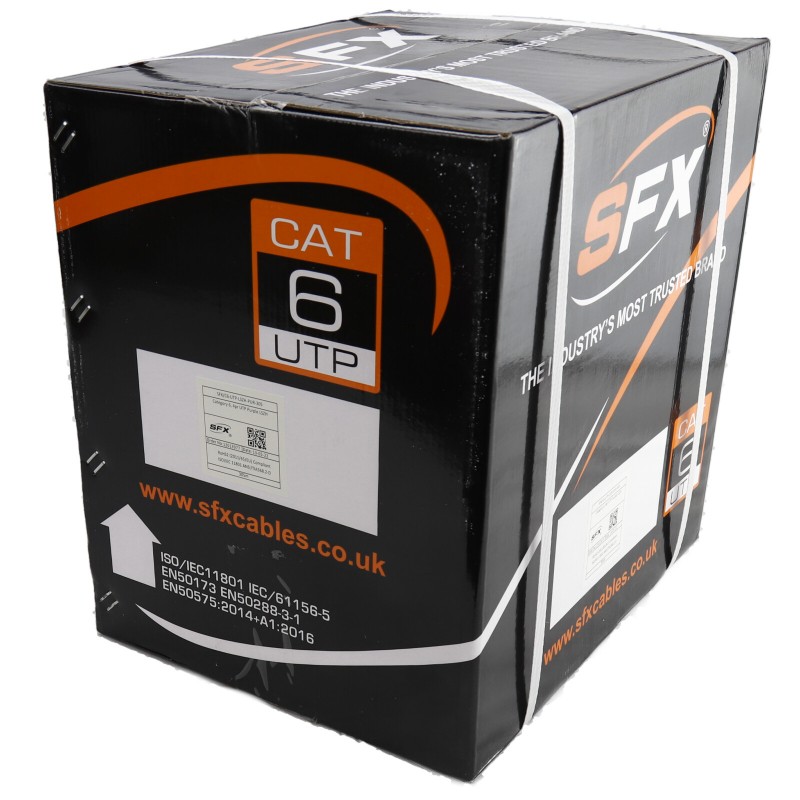

Supplied in a feeder box the Low smoke cable Is meter marked and perfect for sending internet signals in offices or installing a network at home.
This cable is designed for high-speed data transmission of up to 1000Mbps (GIGABIT) speeds. As this cable is made from FULL COPPER it s also suitable for POE / CCTV equipment.
Passes Cat6 fluke test 100m at 250MHz Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire Complies to TIA/EIA-568 Cat6 standard HDBaseT Compliant Conductor Solid OFC Strands 8 x 1/0.54mm
Conductor Solid OFC Strands 8 x 1/0.54mm 2per cent Conductor CSA 8 x 0.229mm2 Cable : diameter 5.8mm Insulation HDPE 0.195mm thickness Sheath LSHF 0.55mm thickness Capacitance 5.2nF/100m DC resistance at 20C - 9.5 ohms/100m Impedance (1 to 250MHz) 100 15 ohms Return loss > 17.3dB at100m

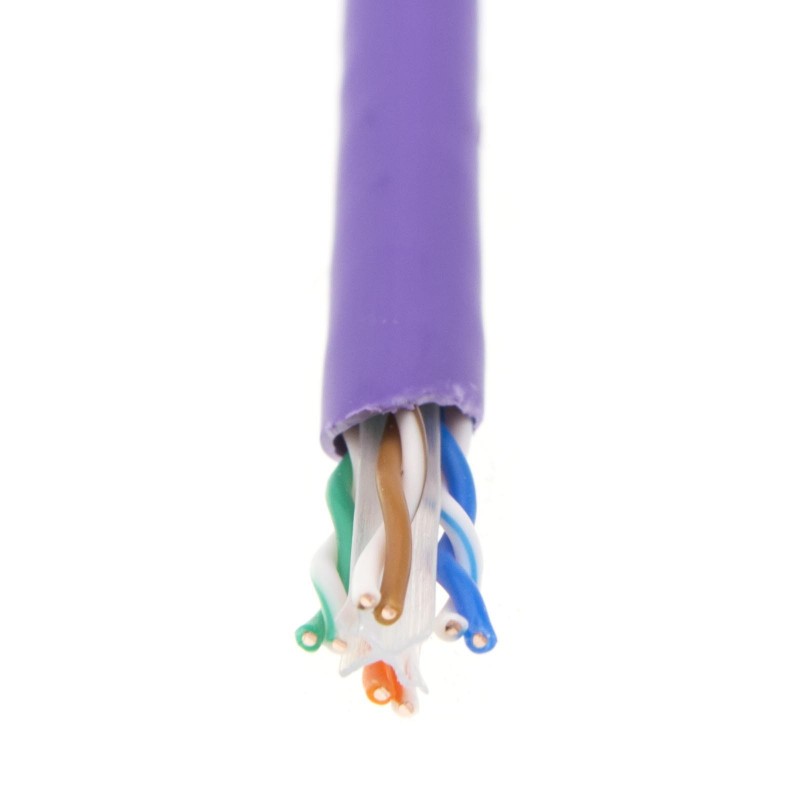

Attenuation <32.8dB at 100m NEXT > 38.3dB PSNEXT > 36.3dB ELFEXT > 19.8dB PSELFEXT > 16.8dB Phase delay <570ns Cable colour Lilac Length 305m Weight 12.7kg
We always suggest terminating SOLID cable into faceplates or patch panels. See QS numbers below:
Cat 5e Single: QS: 001074 Cat 5e Double: QS:001075 Cat 5e Quad: QS: 001277
