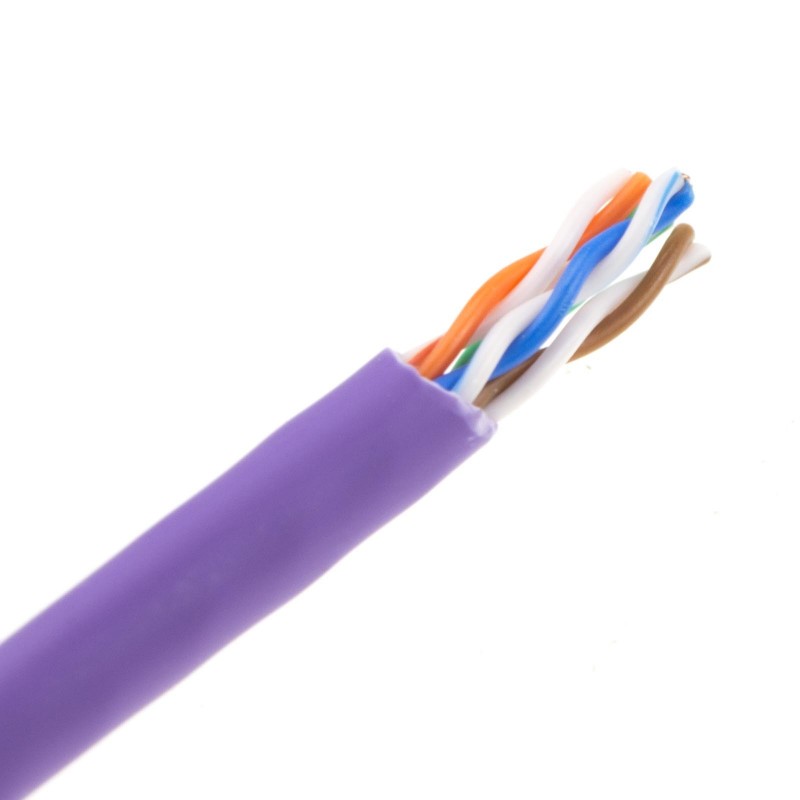

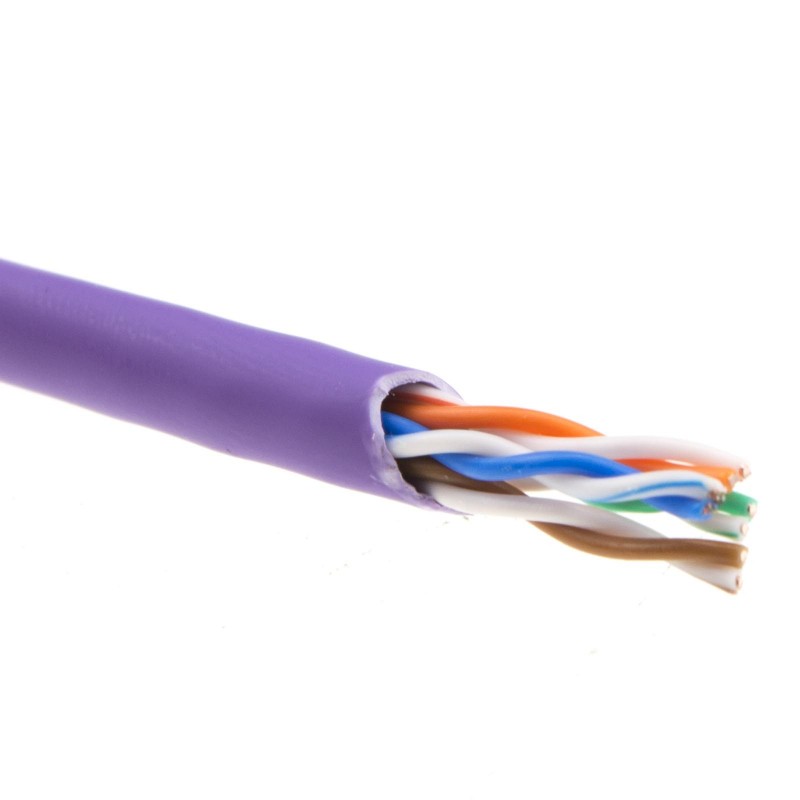

Low Smoke CAT5e LSZH LSOH UTP COPPER Ethernet Network Cable Reel 305m

Low Smoke Zero Halogen network cables are cables that emit very limited smoke and zero halogen when exposed to high sources of heat and are part of building regulations especially when installing cables in schools and other government buildings.

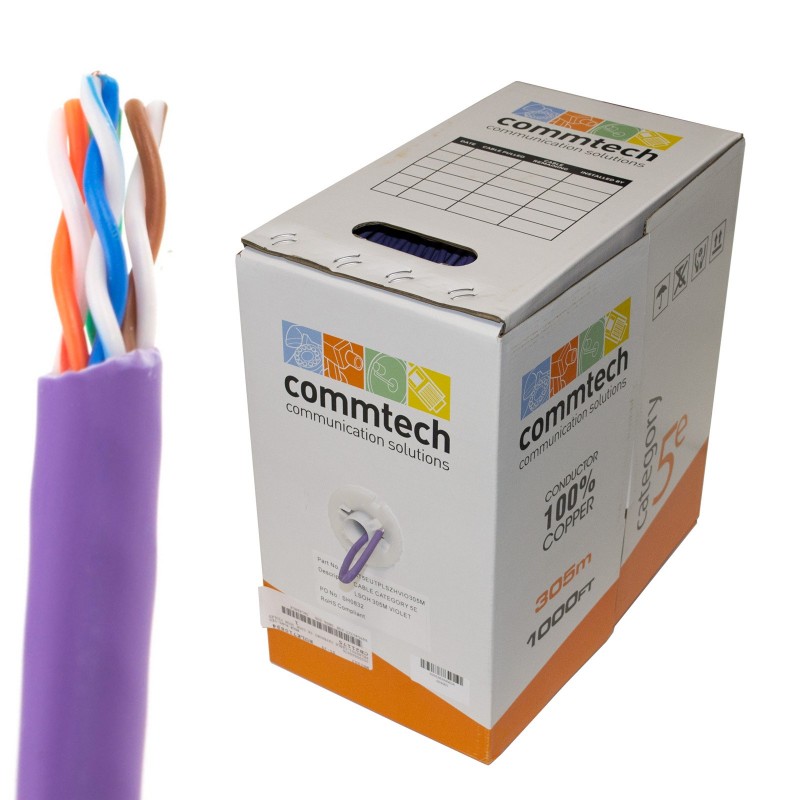

Supplied in feeder box the Low smoke cable Is meter marked and perfect for sending internet signals in offices or installing a network at home.

This cable is made from FULL COPPER its perfect for sending network signals and power so also ideal for use with POE / CCTV / VOIP equipment.

Solid plain annealed copper conductors
8x Insulated wires formed into 4x pairs cabled together
Designed to support horizontal networking applications over channel distances up to 100m
Cable meets the specified performance for Cat5e U/UTP
Supports all CLASS D applications as defined within ISO/IEC 11801 2nd Edition
LSZH (violet) jacket


Conductor Solid OFC
Strands 8 x 1/0.5mm 2%
Conductor CSA 8 x 0.196mm²
Cable : diameter 5mm
Insulation HDPE 0.19mm thickness
Sheath LSZH 0.5mm thickness
Capacitance 4.9nF/100m
DC resistance @ 20C &lt9.5 ohms/100m
Impedance (1 to 100MHz) 100 15 ohms
Return loss &gt20dB @100m


Attenuation &lt22dB @100m
NEXT &gt35.3dB
PSNEXT &gt32.3dB
ELFEXT &gt23.8dB
PSELFEXT &gt20.8dB
Phase delay &lt570ns
Cable colour Lilac
Length 305m

We always suggest to terminate SOLID cable into faceplates or patch panels. See QS numbers below:

Cat 5e Single: QS: 001074
Cat 5e Double: QS:001075
Cat 5e Quad: QS: 001277


Cat 6 Single: QS: 001334
Cat 6 Double: QS: 001335
Cat 6 Quad: QS: 001409
