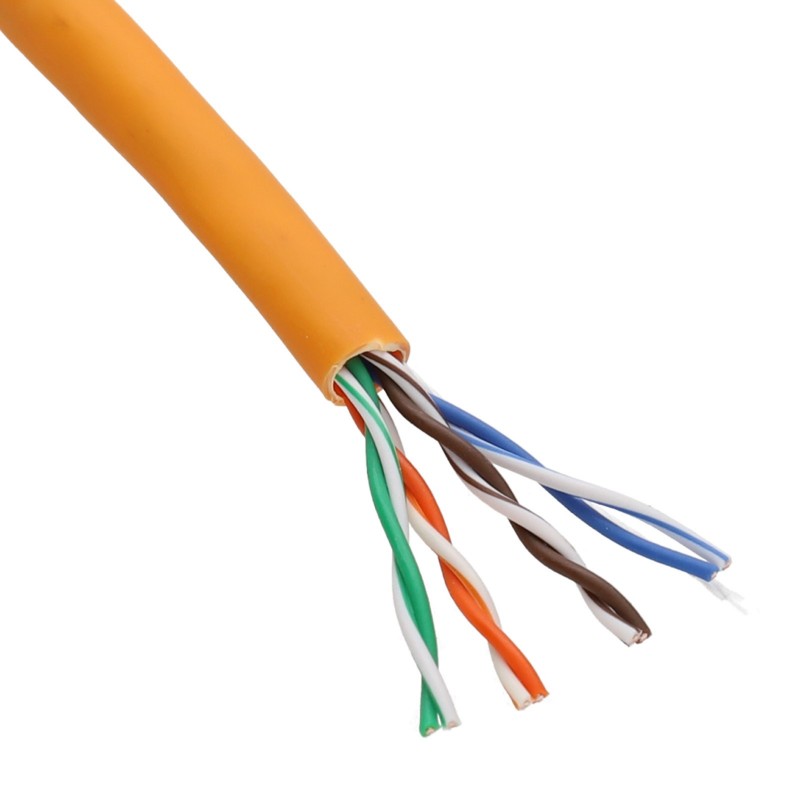

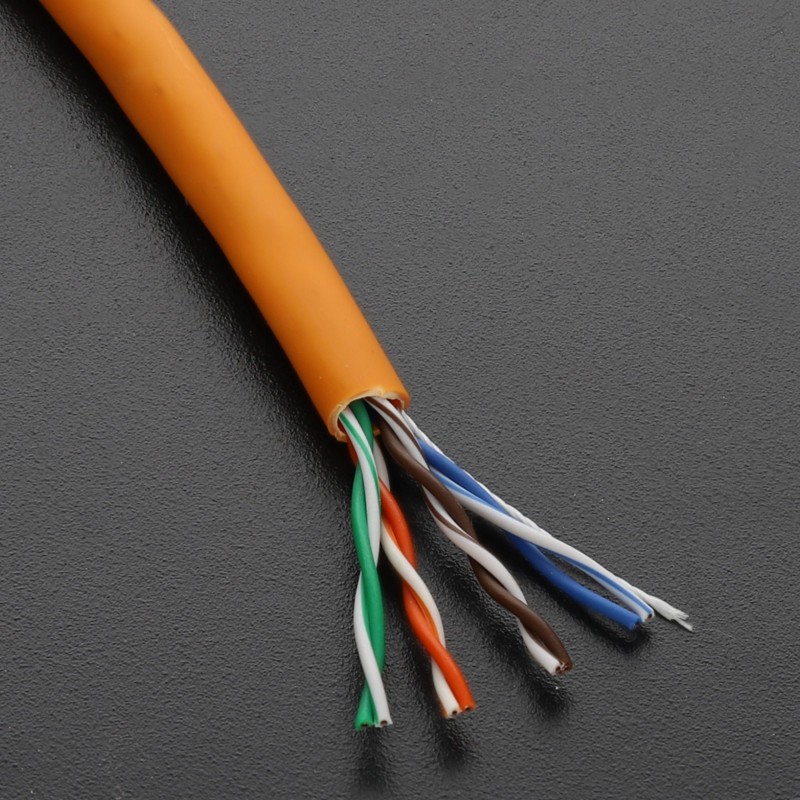

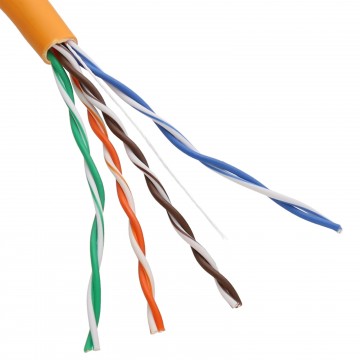

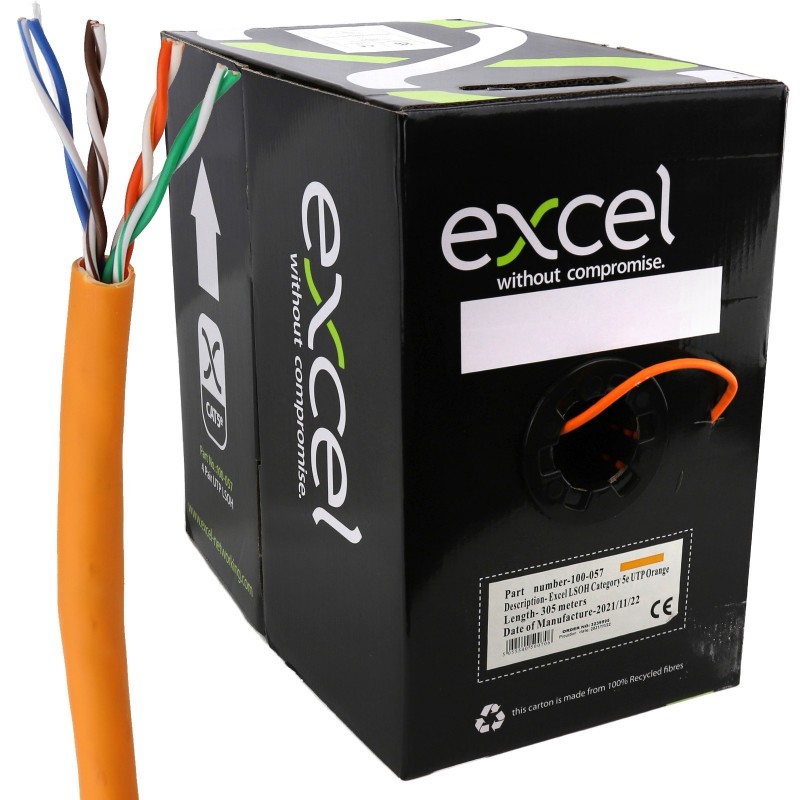

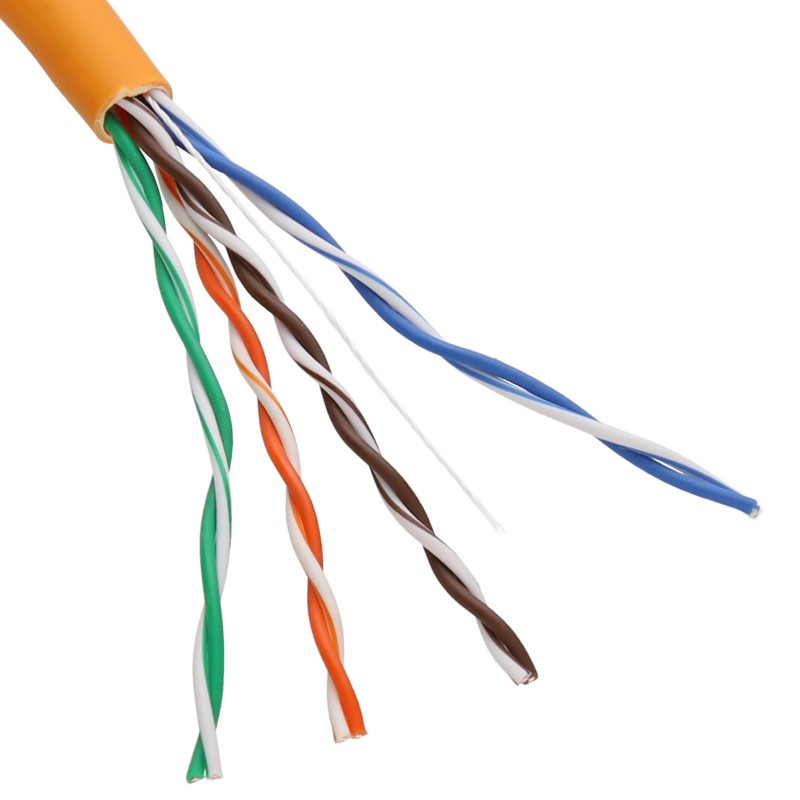

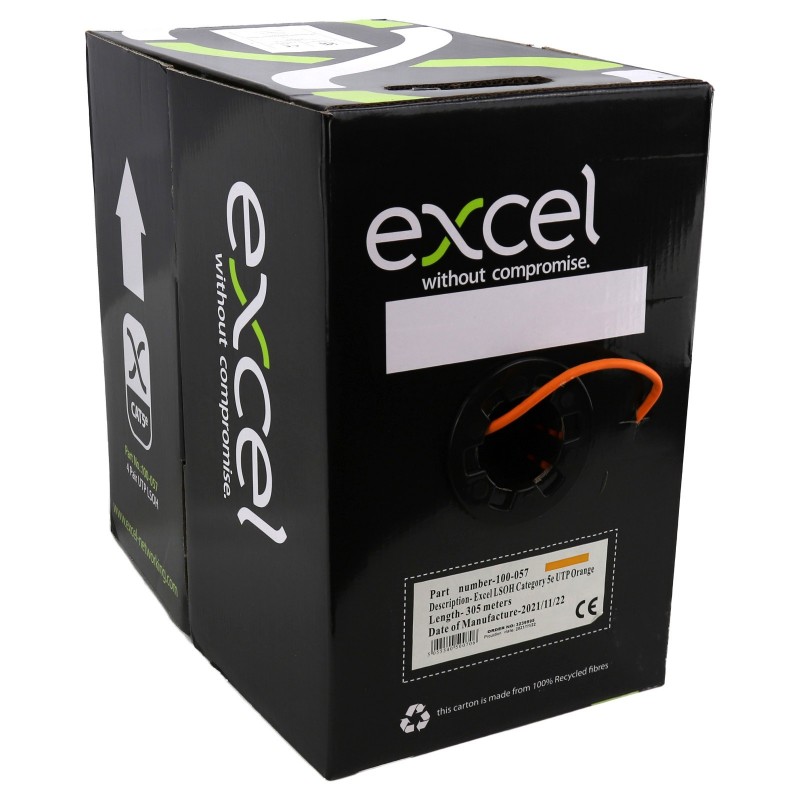

Excel solid Cat5e ethernet cable U/UTP LSOH CPR Euroclass Dca are manufactured and tested to ISO 1180 EN 50173 and ANSI/TIA 568 C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.

The whole cable is produced in a LSOH sheath which is metre marked and labelled with part code and DoP information.

Cat5e Solid Copper Cable
U/UTP No Overall Screening
No Conductor Screening
Outer sheath colour Orange
Reaction-to-fire class according to EN 13501-6: Dca
Smoke development class according to EN 13501-6: s2

Key Features
Conductor surface: Bare
AWG size: 24
Conductor category: Class 1 = solid

Total number of cores: 8
Stranding element: Pairs
Specification core insulation: PE


Low Smoke Cable
Low smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.

Euroclass Cable!
Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.

Excel
011598
4 Items

Data sheet

Type
Cable
Colour
Orange
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Parent
#EXCEL-5E-REELS
Length
305m
Features
European
Suitable for CCTV
Suitable for POE
Suitable for VOIP Phones
Ethernet Version
Cat5E Copper
