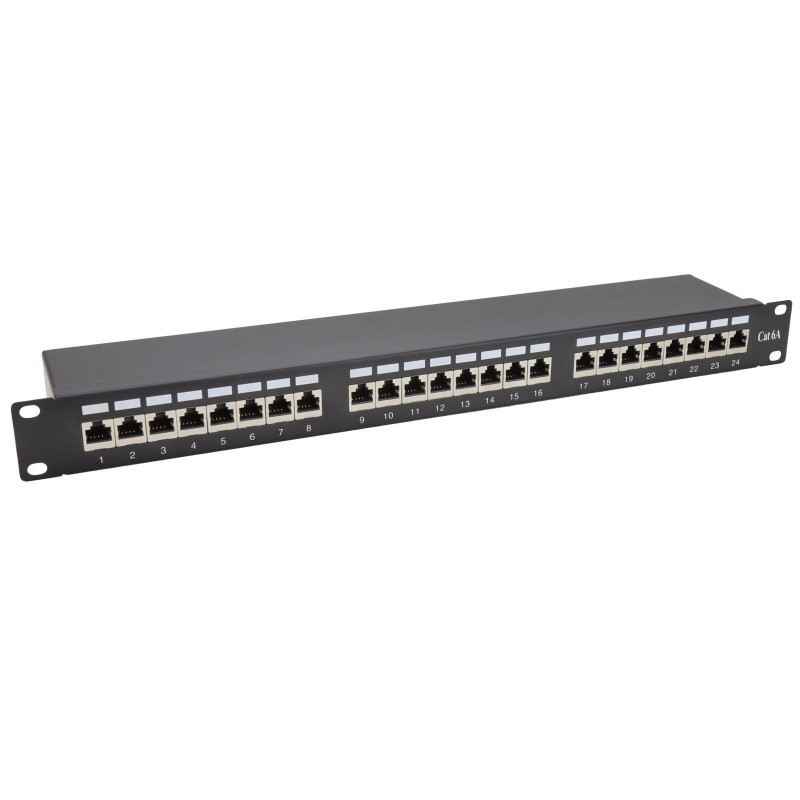

24 Port SHIELDED Network 19inch Patch Panel CAT6A STP Vertical Punchdown

Introducing our premium 24 Port Vertical Punchdown CAT6A Patch Panel the ultimate solution for organizing and optimizing your network infrastructure with superior shielding capabilities. Designed for high-performance networking environments this patch panel delivers reliable connectivity and enhanced data transmission making it ideal for businesses data centers and professional installations.

Product Specifications:

• 19 inch standard size for mounting into server racks and cabinet
• This patch panel is designed for 22-26 AWG solid conductors
• Height: 1U / 24 ports

Material :

• Housing: ABS 94V-0
• IDC: PC UL94V-0
• PCB: FR-4 1.60 mm (0.06 inch) thick 2 layers .
• Contacts: 0.35 mm (0.014 inch) phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area
• Metal housing: 1.50 mm thick metal.

Construction characteristics:

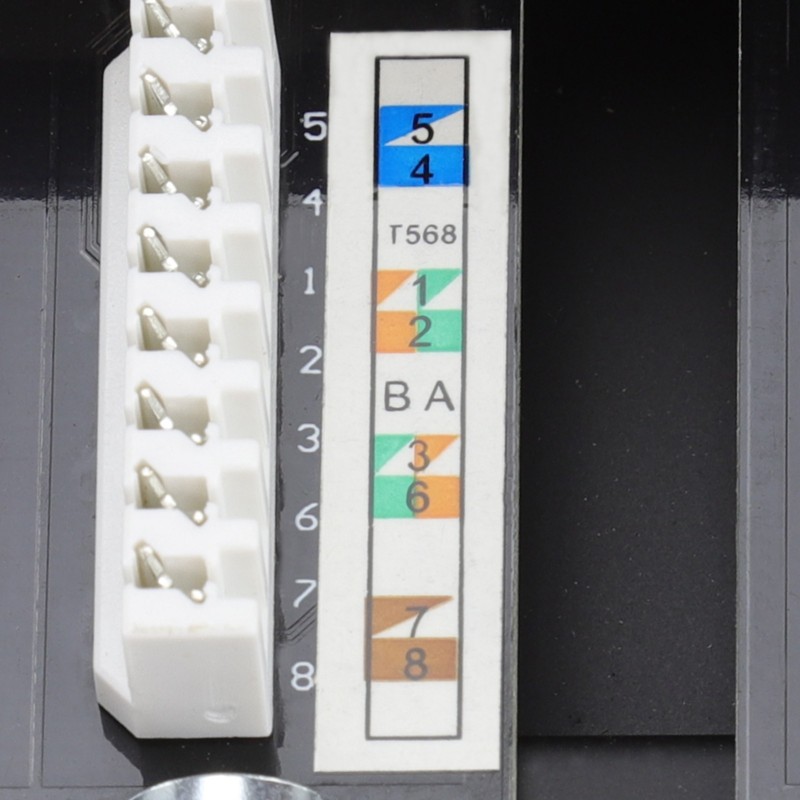

• Color marking of conductors according to T568B and T568A
• Numeral marking of ports on the front side of the panel
• Space for additional marking

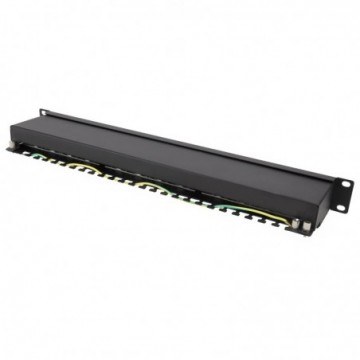

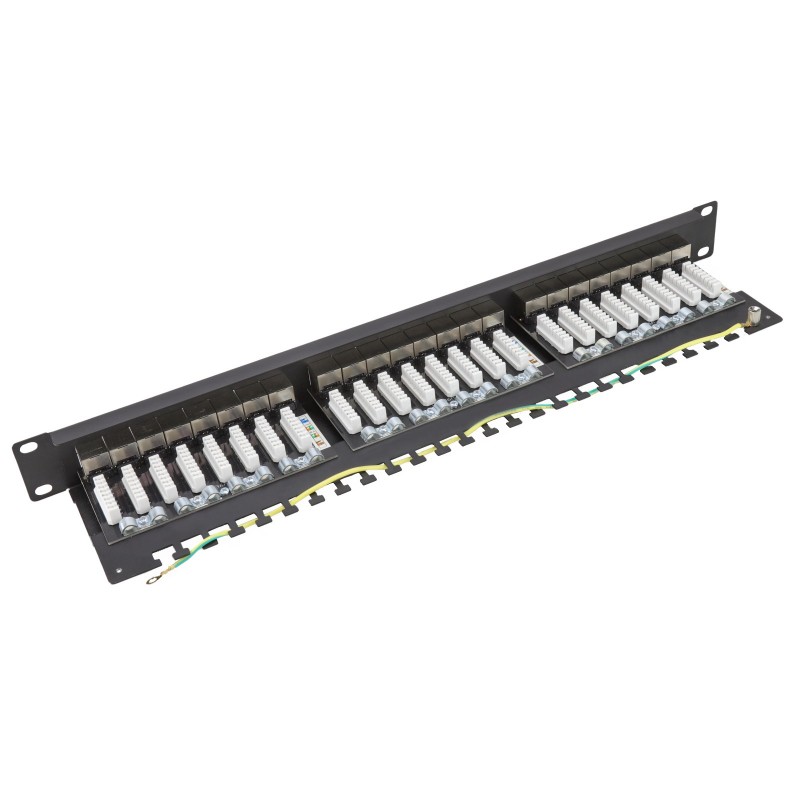

• Color and numeral marking of IDC modules on the rear side of the panel
• IDC Dual contacts provide minimal crosstalk
• 110 type punch down tool is used for cable termination

Electrical characteristics :

• According to UL 1863
• Current rating: 1.5 A max
• Voltage rating: 150 V
• Contact Resistance: 20 mOhm
• Insulation Resistance: 500 MOhm
• Dielectric withstand voltage: 1000 V AC RMS 60Hz/1min
