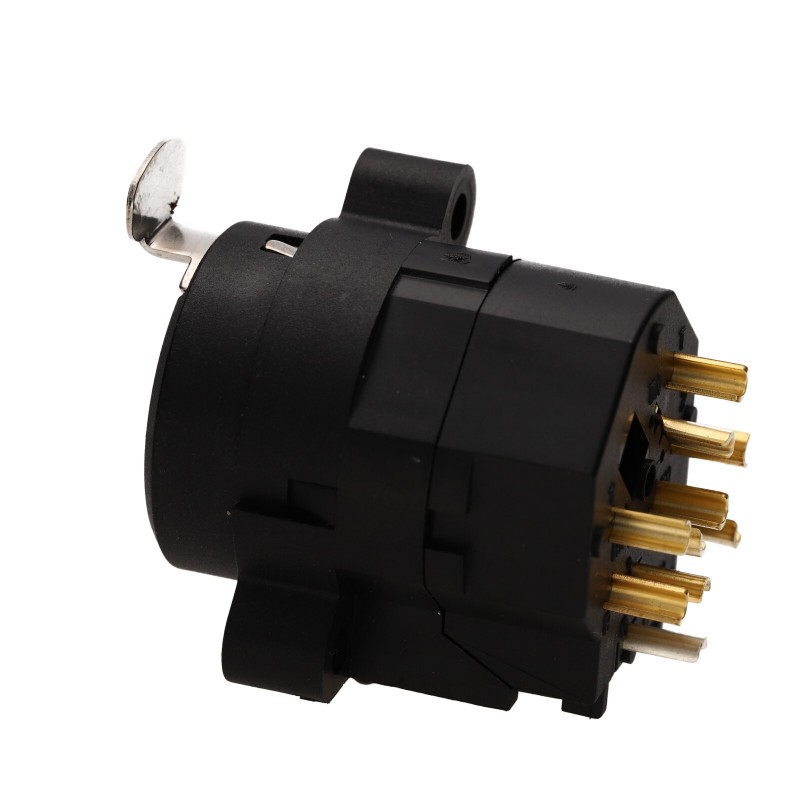

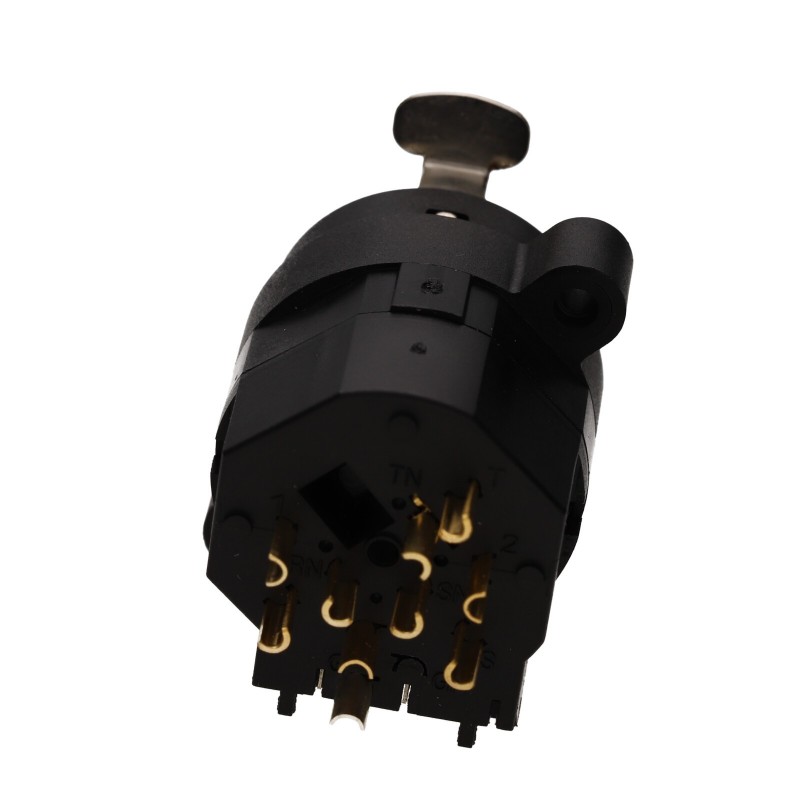

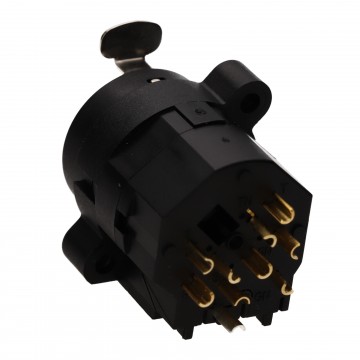

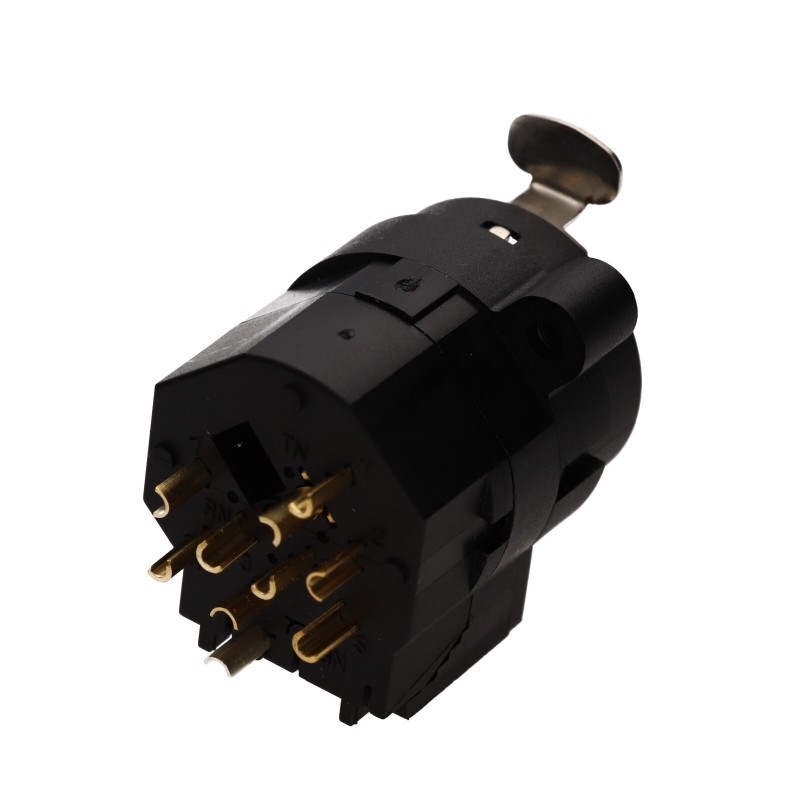

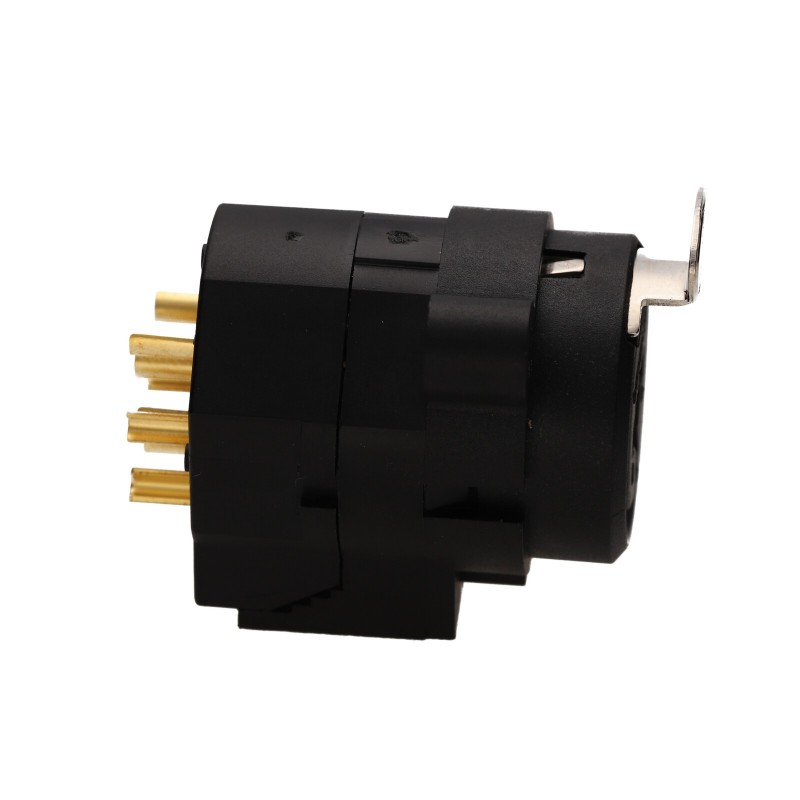

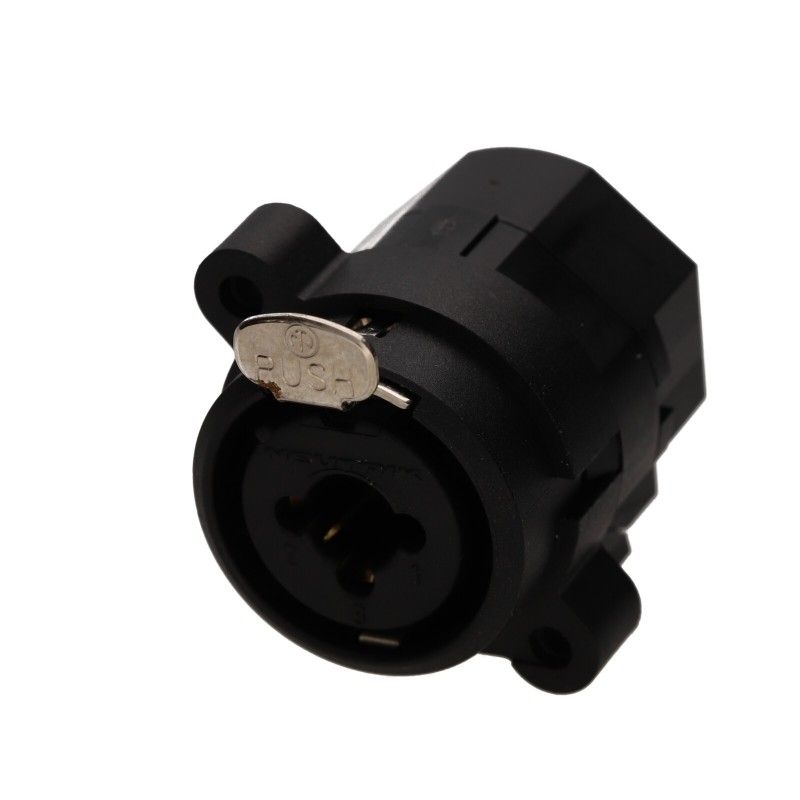

Neutrik NCJ9FIS Combo Female XLR + 6.35 mm SWITCHED Stereo Jack Chassis Socket

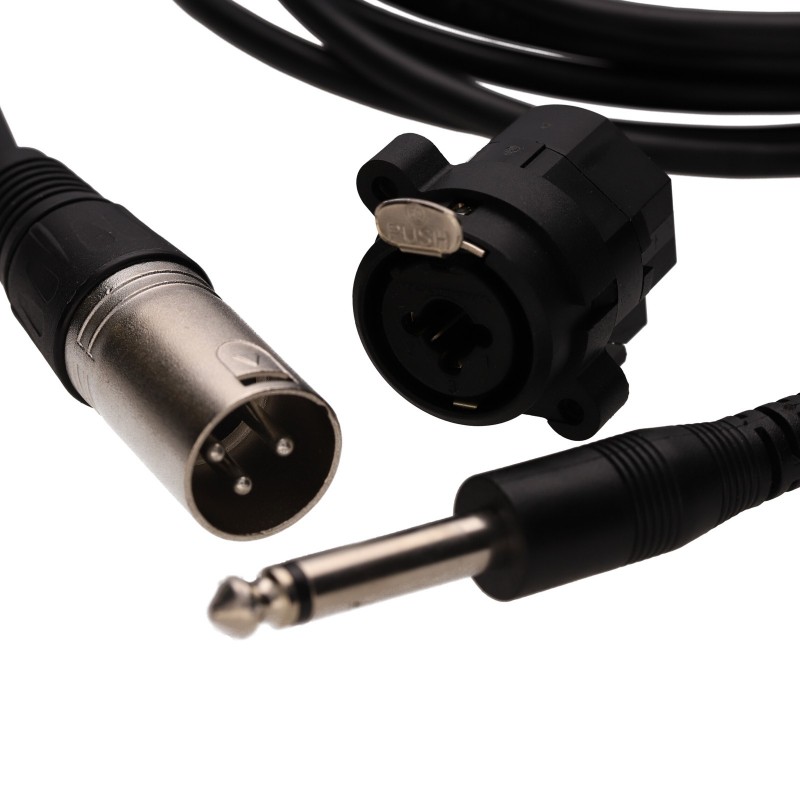

The Stereo Socket panel mount is perfect for replacing a damaged socket or creating your own patch bay or effects unit panel mounts. The combo socket allows you to connect either 6.35mm (1/4 inch guitar size) jacks or 3 pin XLR plugs.

Switched Panel Mount
A switched connection is useful when you want to disconnect a section of a circuit. This is usually used for things like input/output on effects loops switching between multiple inputs etc.

Balanced or line inputs in one XLR shell
Saves rack space by combining 2 connectors in one housing
Very low conductor capacitance therefore suitable for digital audio
Product Dimensions (mm): 40x30x25
Chassis Cut Out size (mm): 23.8
Colour: Black
Contact Material: Gold Plated
Fixing Centres (mm): 20 x 23
Number of Contacts: 9
Type: Female/Stereo
011190
8 Items

Data sheet

Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Features
Individually Switched
Stereo
Ends
6.35mm
XLR
