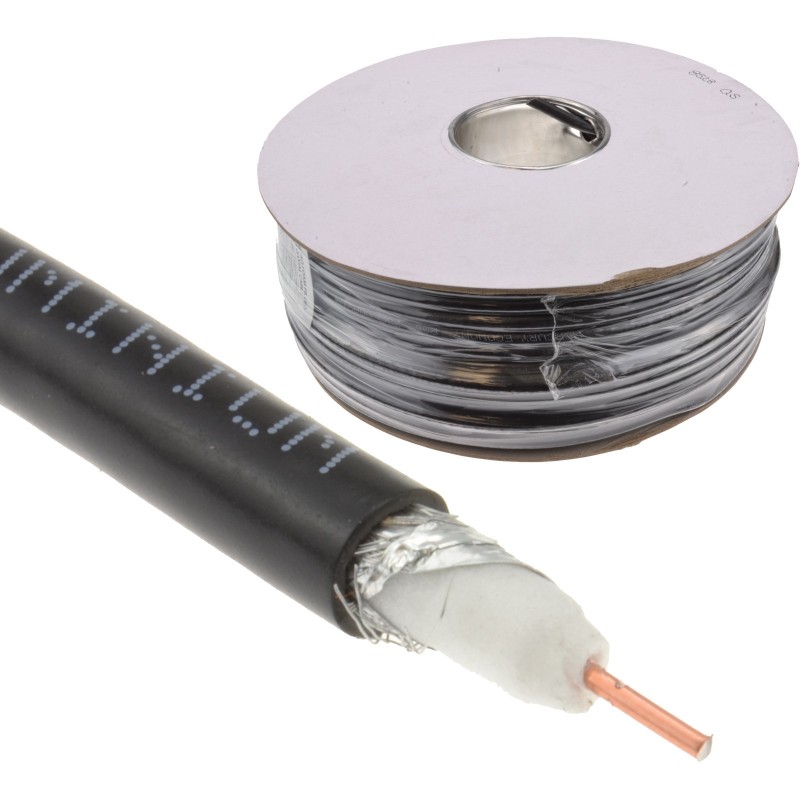

Coaxial RG6U Foam Filled Satellite CCS Cable Reel 100m Lead Black

ECONOMY RG6 75 Ohms FOAM FILLED COAXIAL CABLE - ALUMINIUM BRAID

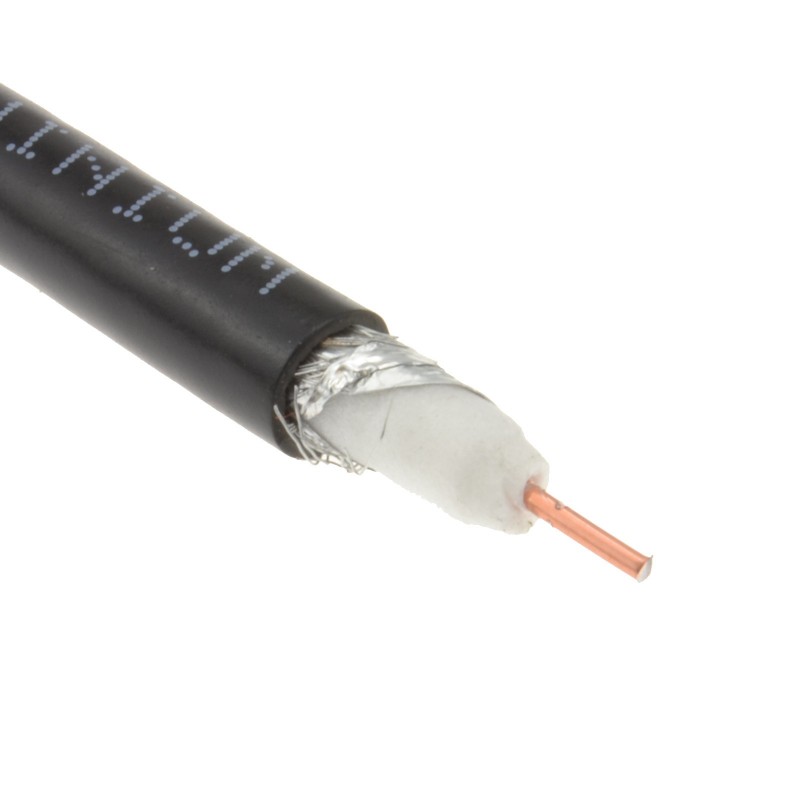

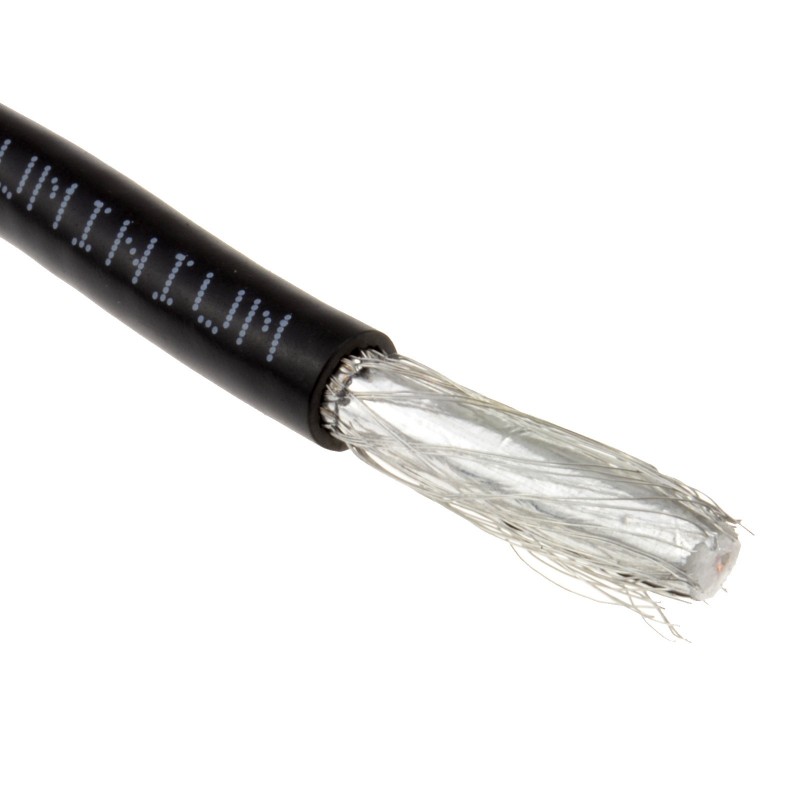

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor foam filled polyethylene dielectric aluminium foil screen aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital satellite and cable TV signal transmission.

Solid CCS conductor Foam filled PE dielectric Binded aluminium screen

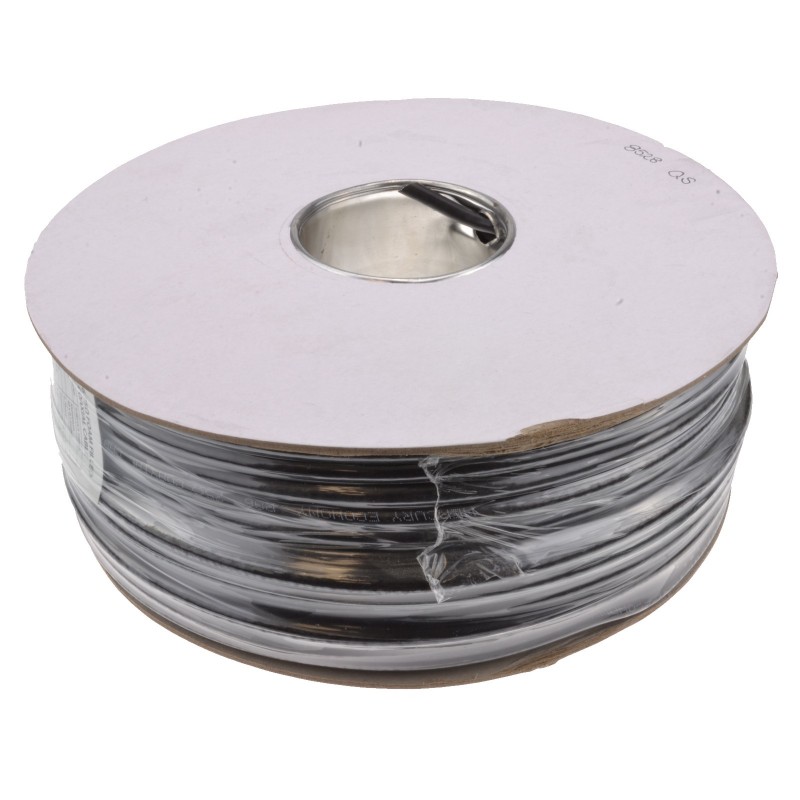

Aluminium braid Supplied in 100m reel with metric cut markers

CSA 0.79mm^2 Conductor diameter 1mmDiametre Conductor material Solid CCS Braid 48 x 0.12mmDiametre Braid material Aluminium Screen Aluminium / PET foil Dielectric 4.6mmDiametre foam PE Cable diameter 6.6mmDiametre Impedance 75 Ohms Capacitance 54pF/m Velocity factor 83% Return loss 5-400MHz 24dB min./100m Return loss 450-1000MHz 20dB min./100m Return loss 1000-2150MHz 16dB min./100m Attenuation @ 5MHz 2.8dB max./100m Attenuation @ 50MHz 5.1dB max./100m Attenuation @ 100MHz 6.9dB max./100m Attenuation @ 200MHz 10.1dB max./100m Attenuation @ 400MHz 14.9dB max./100m Attenuation @ 860MHz 20.1dB max./100m Attenuation @ 1000MHz 22.2dB max./100m Attenuation @ 1750MHz 29.6dB max./100m Attenuation @ 2150MHz 33.3dB max./100m Length 100m
