Coaxial cables are suitable for many applications including low power video video signal and broadband signals. They are also used in high-frequency transmission especially for transmitters and receivers computers radio and receivers computers radio and TV transmissions.

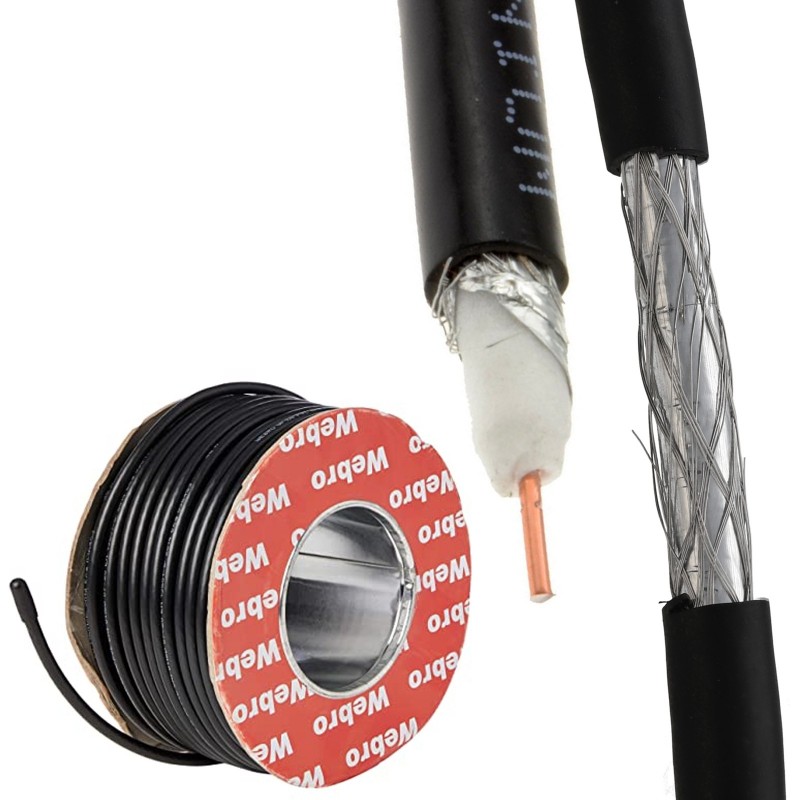

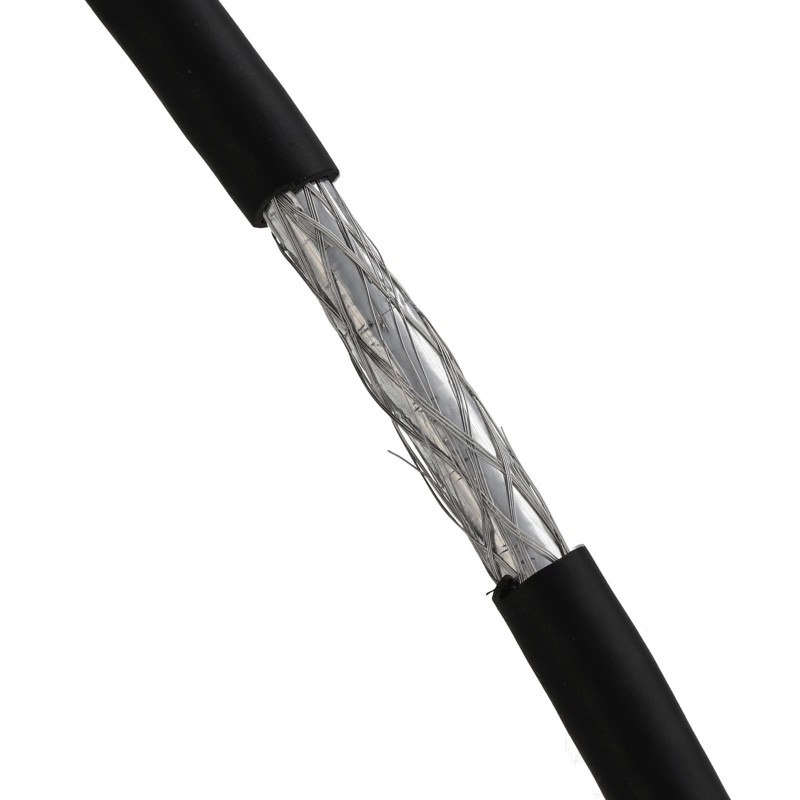

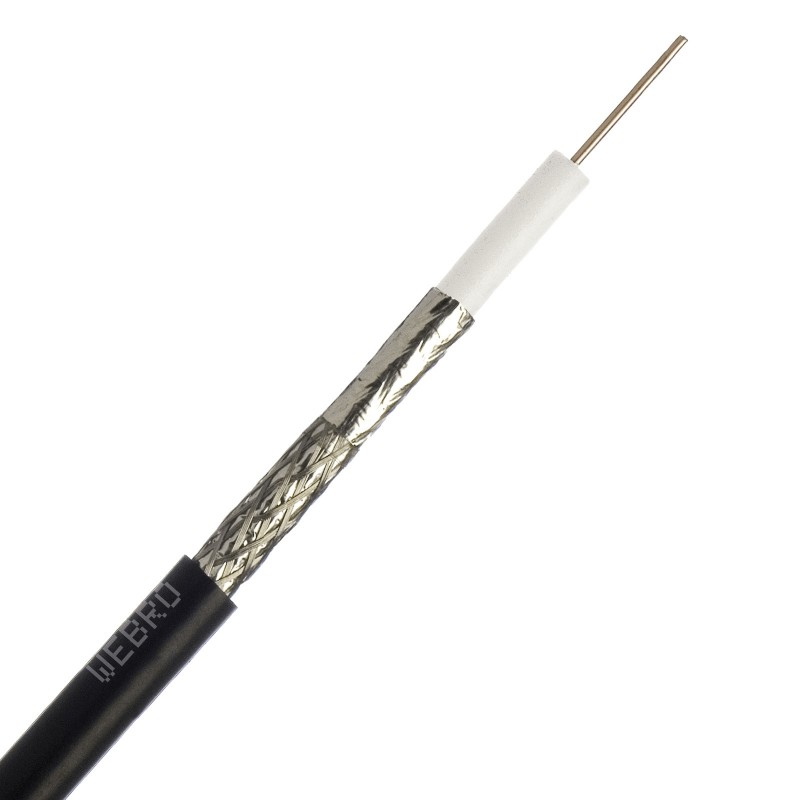

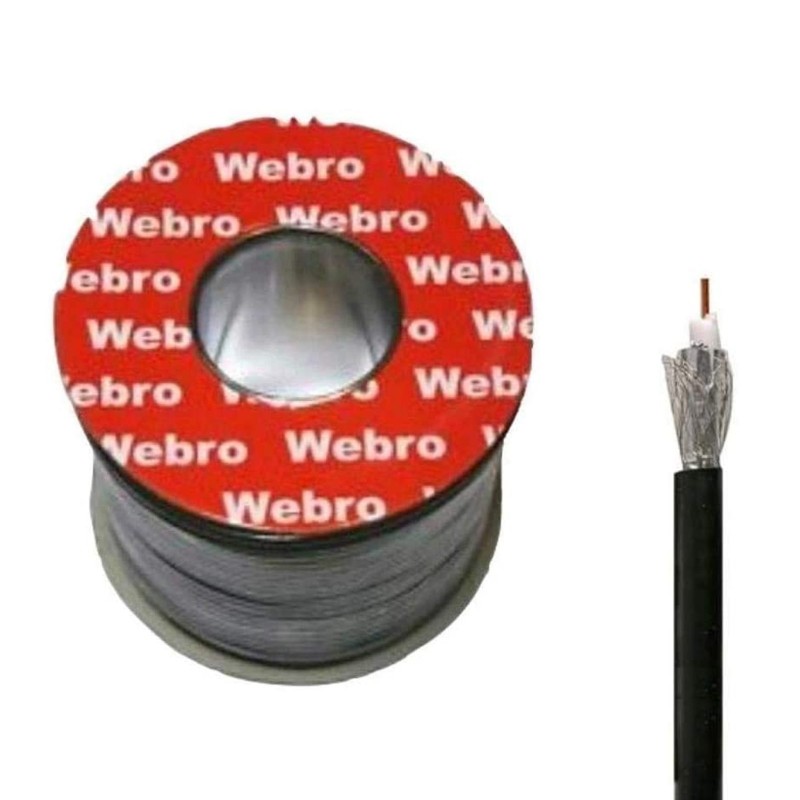

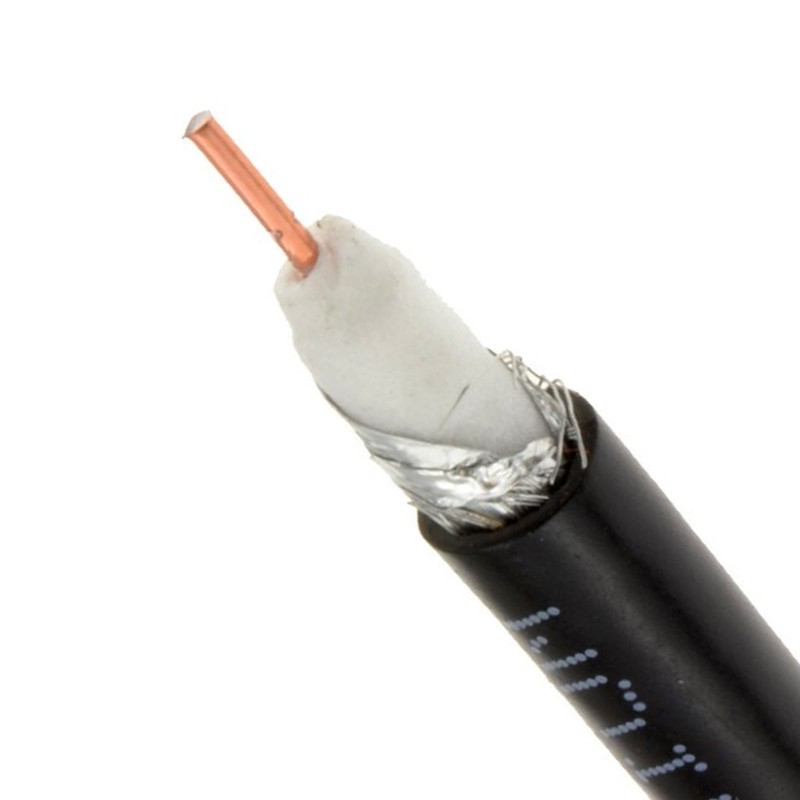

RG6 coax cable consists of a 1.00mm solid copper clad steel conductor foam polyethylene dielectric aluminium foil tape aluminium wire braid and sheathed overall in PVC.

Inner Conductor: 1.00mm Copper Clad Steel
Dielectric: Foamed Polyethylene
Screen:
Aluminium Foil Tape
Aluminium Wire Braid
Insulation Diameter: 4.80mm (Natural)
Sheath Diameter: 6.55 0.30mm
Storage/Operating Temperature: -15C to +70
Minimum Installation Temperature: -5oC
Available in white or Black

Need Ends? RF (Push In) Ends QS: 005056
F Type (Screw on) Ends QS: 007791

Need Cable Clips?
See QS: 010623
011351
9 Items

Data sheet

Type
Cable
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Parent
#WEBPRO-RG6
Features
Shielded
Length
50m
Colour
Black
Cable
RG6
