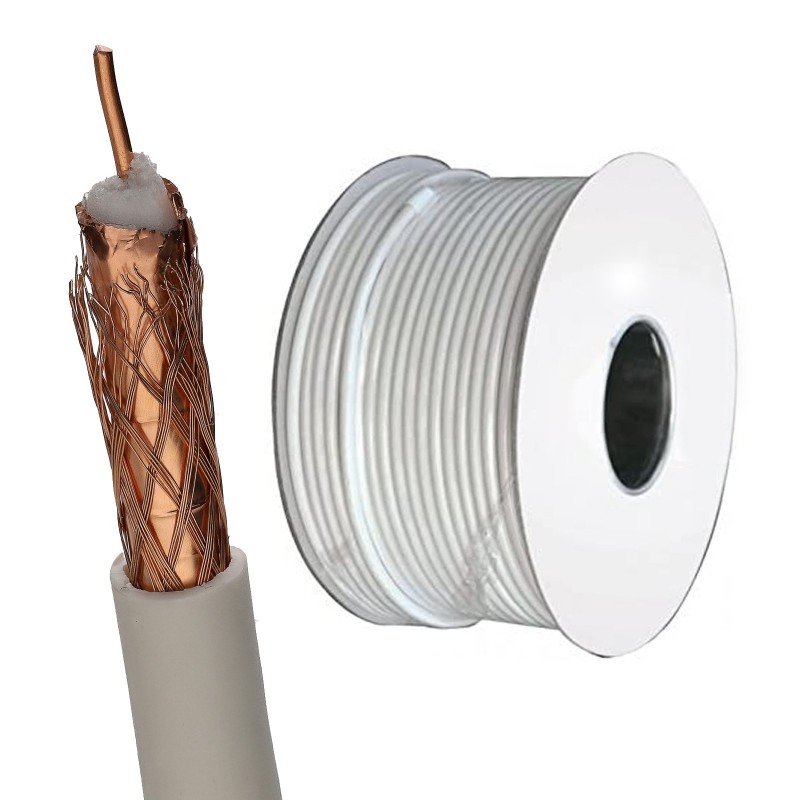

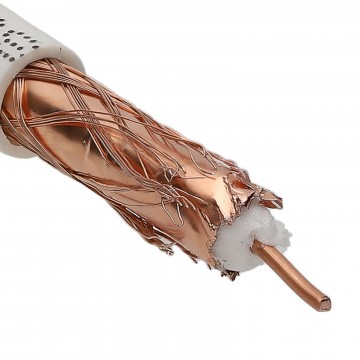

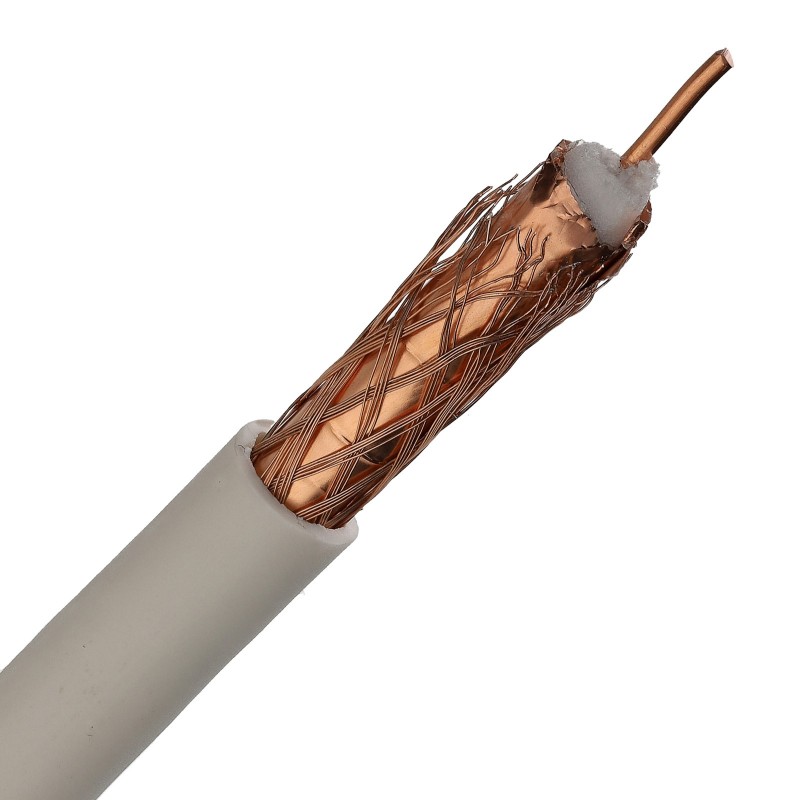

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor foam filled polyethylene dielectric copper foil screen copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital satellite and cable TV signal transmission.

Solid OFC conductor
Foam filled PE dielectric
Copper foil screen


CCA braid
Supplied in 100m reels


CSA 0.79mm2
Conductor diameter 1mm
Conductor material Solid OFC
Braid 64 x 0.12mm
Braid material CCA
Screen Copper foil
Dielectric 4.6mm foam PE
Cable : diameter 6.6mm
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83
Return loss 5-400MHz 28dB min./100m


Return loss 450-1000MHz 24dB min./100m
Return loss 1000-2150MHz 18dB min./100m
Attenuation @ 5MHz 1.8dB max./100m
Attenuation @ 50MHz 4.7dB max./100m
Attenuation @ 100MHz 6.6dB max./100m
Attenuation @ 200MHz 9.7dB max./100m
Attenuation @ 400MHz 14.6dB max./100m
Attenuation @ 860MHz 19.6dB max./100m
Attenuation @ 1000MHz 21.6dB max./100m
Attenuation @ 1750MHz 29.1dB max./100m
Attenuation @ 2150MHz 32.7dB max./100m
011226
4 Items

Data sheet

Type
Cable
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Length
100m
Colour
White
Parent
#100U-COAX-OFC
3000
Cable
100U
