The Universal AV Snap-in Modular Range is ideal for installing and concealing AV cables within walls or trunking. This system is ideally suited to classrooms conference rooms & meeting rooms. You have the freedom & flexibility of choosing the connection combinations you require to create your own specific set-up.
The installation will consist of single or double back boxes surface mounted onto a wall. Relevant faceplates are screwed to the back boxes and your chosen modules simply snap into the faceplate. Any unused space can be filled with a blanking plate. Cables from the AV devices such as a Television Projector Speaker or Whiteboard are plugged into the female socket on the reverse of the module and generally concealed in trunking. This completes the AV Snap-In Modular System and it is now ready for the user to plug cables from their Desktop PC or Laptop into the front of the AV Modules. Installation couldn t be easier! Single Gang Fits up to two stubs: QS 05009 Double Gang Fits up to 4: QS 07327 Blanking Plate: 04802 or 2x 04505 if you would like your stub centered
With the ready made faceplate its simple to create a design that best suits you rather than having left over ports that are not required or 4 individual faceplates instead of 1 with everything on it. The stubs are 2.5cm W x 5cm H.

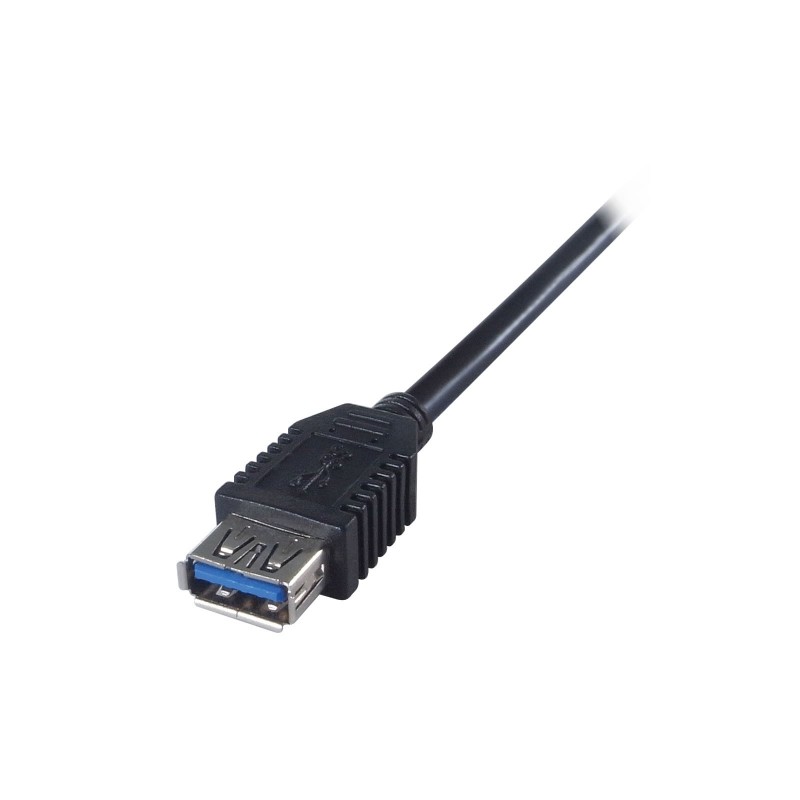

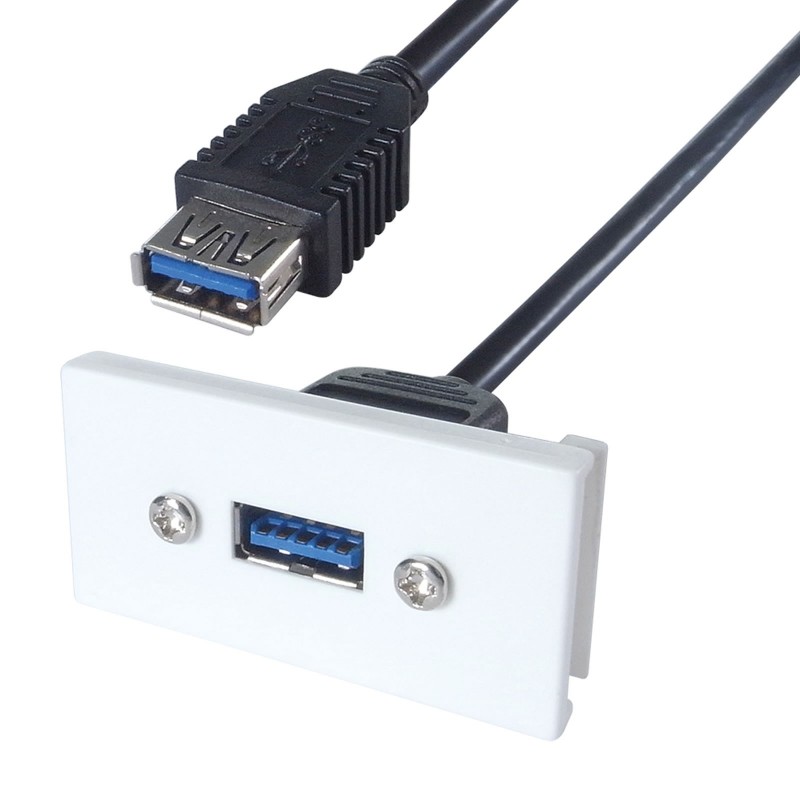

The USB 3 Snap-In Modules feature a socket on the front of the plate and a female socket on the reverse via a trailing cable
No soldering required! Creates a simple connection between your PC & AV Device Ensures a tidy environment - cables from the AV Devices are concealed behind trunking Easy to install meaning reduced installation time and expense Easily upgradable - designed to future proof your system Modules are designed to withstand the strain of cables being plugged in and out of the socket. The clips are made to a deeper than usual depth to ensure a stronger/firmer hold to the faceplate.
Please be aware that the kenable CST range panel mounts are a slightly different shade of white than this panel mount
008527
30 Items
Data sheet
Country of Origin
China
RoHS Compliant
Yes
Length
0.15m
Colour
White
Parent
#faceplateModule
USB Version
3.0
