The ready made faceplate stub is simple and easy to use with no soldering required. Designed to fit our existing face they simply press into Place. If you are only using one panel mount then a blanking plate can be used to cover the rest of the face plate

Single Gang Fits up to two stubs: QS 05009 Double Gang Fits up to 4: QS 07327 Blanking Plate: 04802 or 2x 04505 if you would like your stub centered

With the ready made faceplate its simple to create a design that best suits you rather than having left over ports that are not required or 4 individual faceplates instead of 1 with everything on it. The stubs are 2.5cm W x 5cm H.

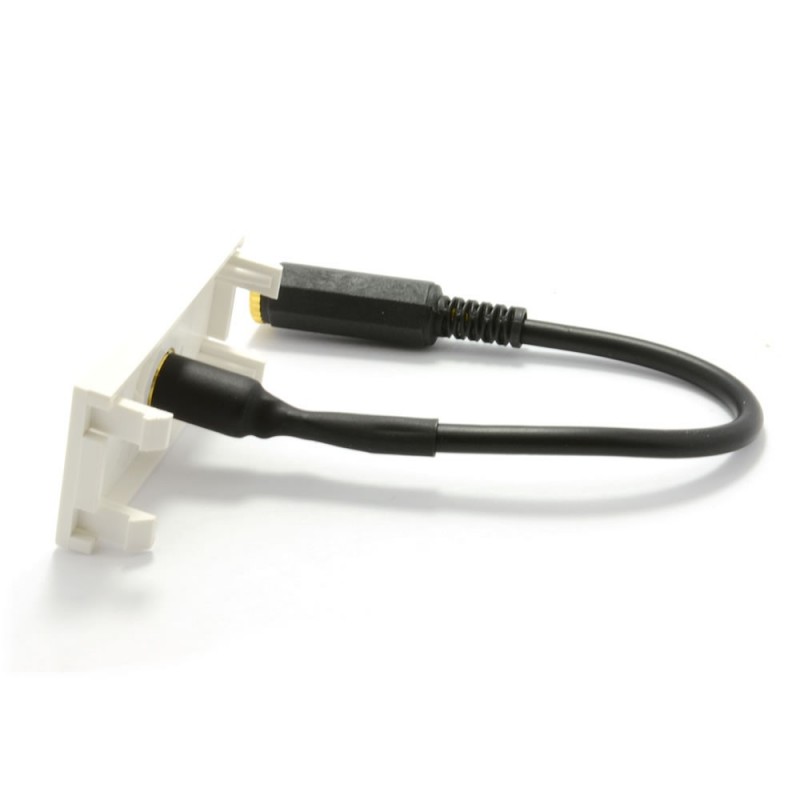

The Stub is 15cm in length and already assembled so all the hard work is done for you. simply connect the device you want linking to the faceplate and away you go.

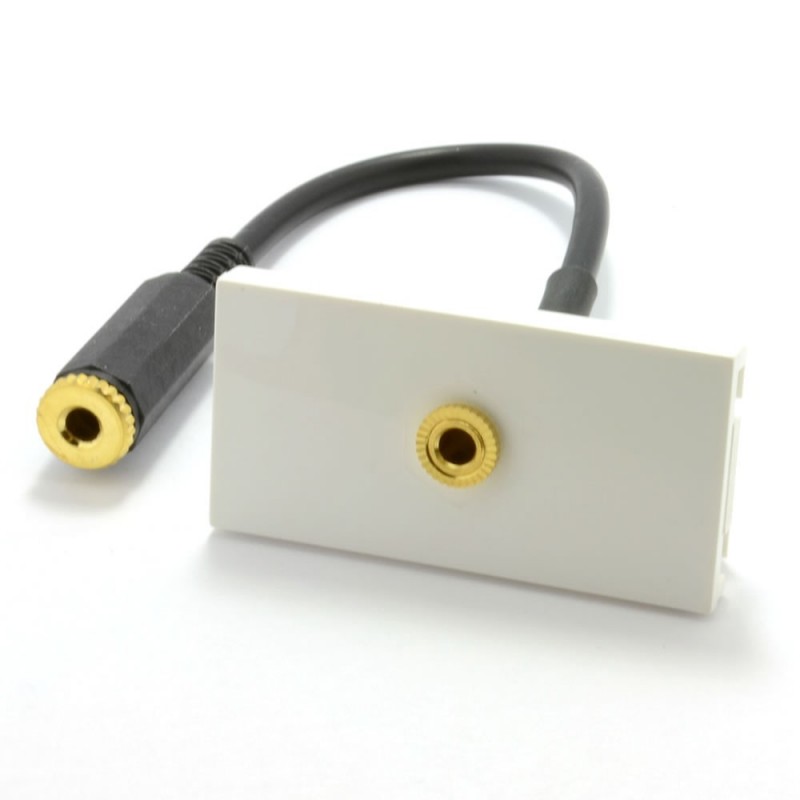

15cm Panel Mount 3.5mm Stereo Jack plug socket on the front and 3.5mm socket on the back allowing you to connect a 3.5mm jack straight into the back without the need to solder anything. Used quite often in connecting PC s audio out/speaker out to the speakers on the side of monitors or TVs also used for other audio equipment.

Fast secure connections 3.5mm Stereo Jack Socket to 3.5mm Stereo Jack Socket Stub 15cm in length Face: 2.5cm W x 5cm H We recommend a deep back box to allow enough room at the back of the faceplate for the 15cm stub
006662
53 Items

Data sheet

Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Parent
#faceplateModule
Colour
White
Ends
3.5mm
Features
Stereo
Length
0.15m
Box Quantity
500
