Not to be confused with the IEC C14 the C20 Is designed for industrial high powered servers.

Looking for high performance power distribution for your heavily loaded systems?

The newly developed 13A heavy-duty horizontal PDU using the modular IEC-20 input connector which is ideal for many device requirements including server network and other industrial-type equipment functions such as broadcast and HVAC applications.

Combining a fully certified IEC-20 plug input combined with a compatible heavy load power flex means you can be assured this PDU can work without problems 24/7.

Furthermore incorporated onto the horizontal form-factor are industry standard UK sockets ideal for data telco and broadcast equipment with the added benefit of integral electrical surge protection.

Robust in design with an integral neon illuminated rocker switch for assured functionality the PDU is designed to deliver maximum

electrical power today and tomorrow.

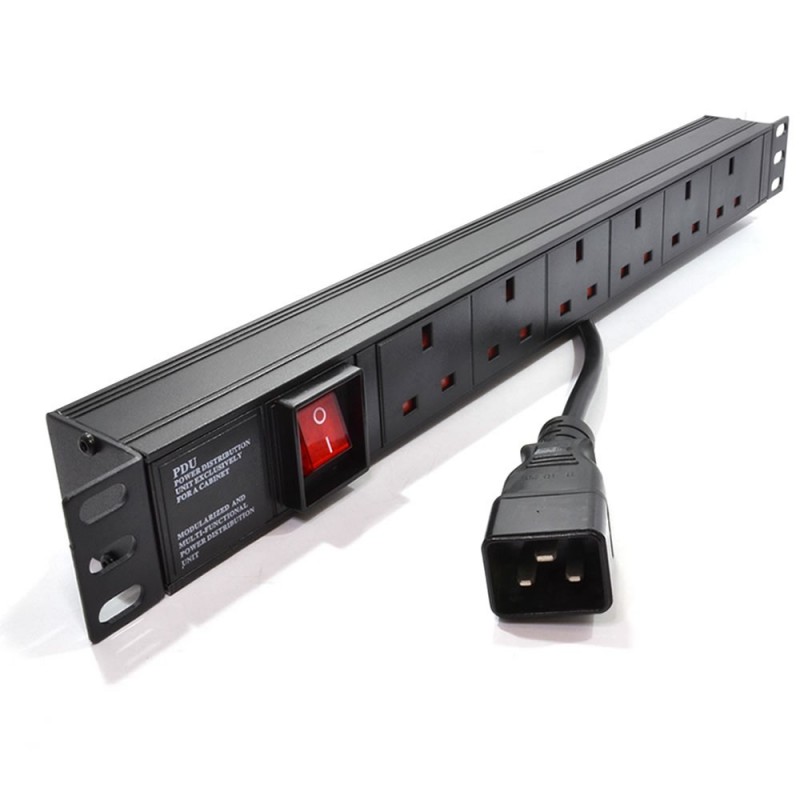

Horizontal high-density Power Distribution Unit (PDU)

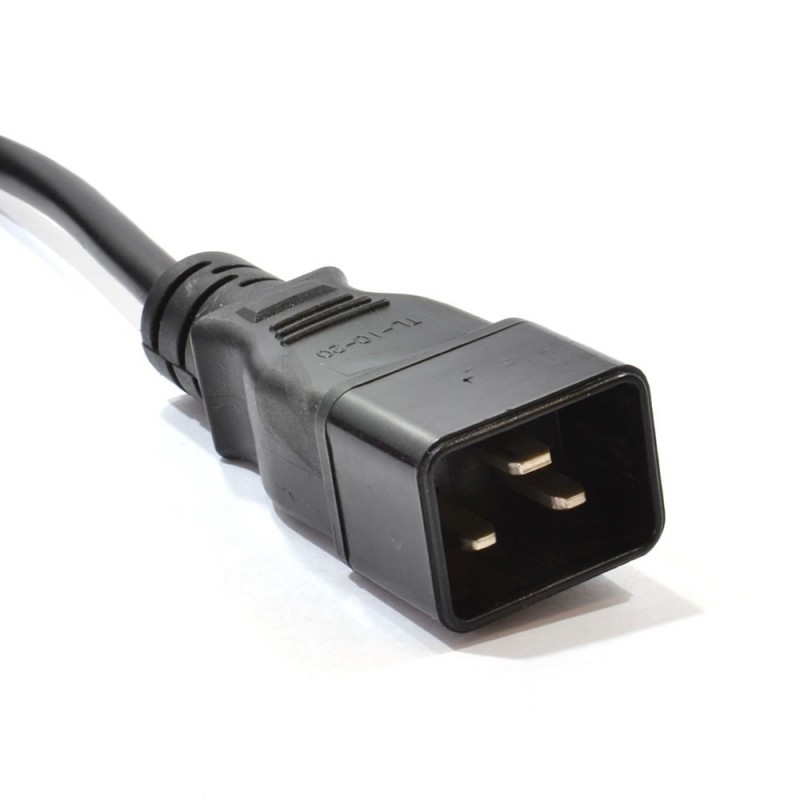

Modular 13A IEC-20 style plug format
Compatible heavy-load power cable
6x UK output power sockets

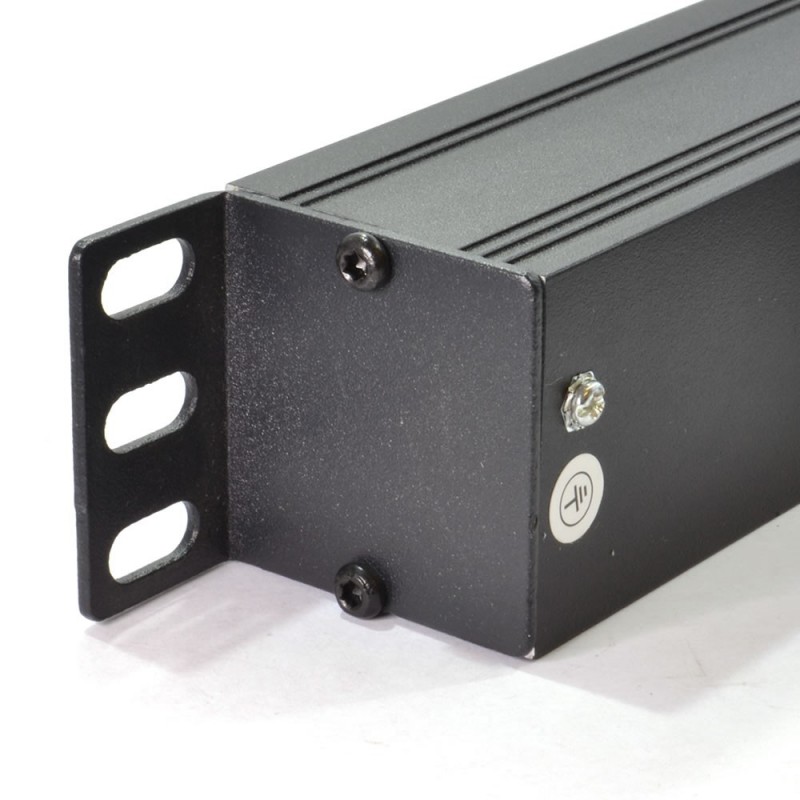

Robust black aluminium design for industrial use
Neon on/off power switch for assured control
Maximum power rating - 4000W
2.0 metre (approx.) power cordage
Ideal for data telecom broadcast and HVAC applications
007764
74 Items

Data sheet

Ends
C20
IEC
IEC (C20)
Length
1.8m
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Parent
#PDU-UK-C20
#PDU-UK-C20-H
Colour
Black
Ways
6 way
Sockets
UK
