Category 6A Ethernet cable commonly referred to as Cat6A is a cable standard for 10 Gigabit Ethernet. The cable standard provides performance of up to 600MHz and is suitable for 10BASE-T 100BASE-TX (Fast Ethernet) 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10 Gigabit Ethernet). It is backwards compatible with previous standards such as Cat6 Cat5e and Cat5.
LSZH: low Smoke Zero Halogen cable reduces the amount of toxic and corrosive gas emitted during a fire.
Supports 10 Gigabit Ethernet / 10GBASE-T: 10 Times faster than Gigabit Ethernet 10GE (also called 10GbE or 10 GigE) supports a data rate of 10Gbits/s (billion bits per second).
S/FTP (or S/STP): Screened and Foil (Shielded) Twisted Pair. Each individual pair is screened by foil and features an overall outer sheath. This shielding protects the cable from EMI (Electro-Magnetic Interference).

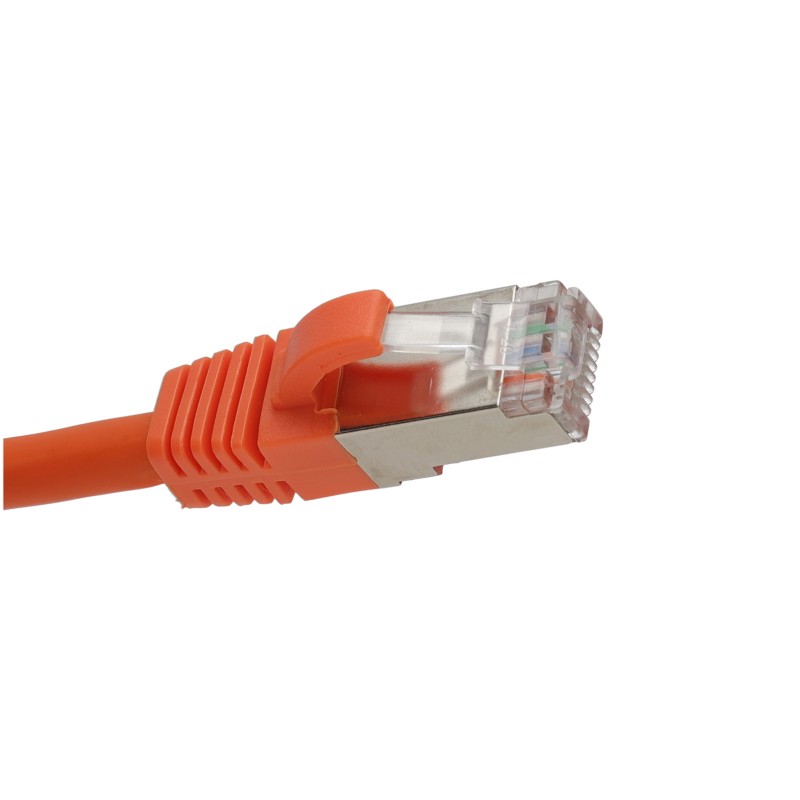

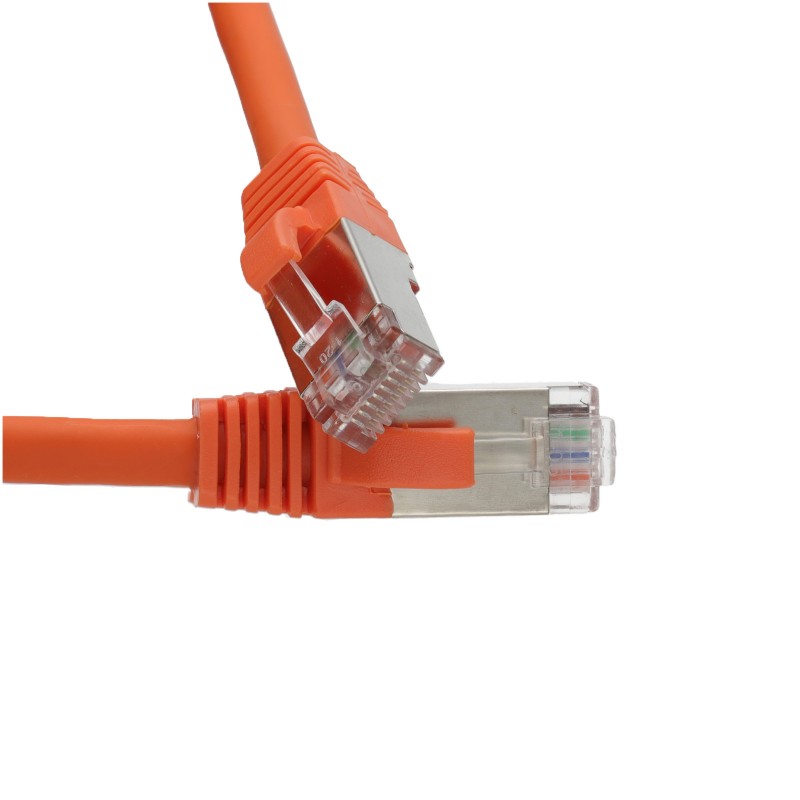

Snagless Connectors: The connectors feature a bubble inch which protects the locking clip on the RJ45 from damage or being snapped off during transport or installation.
Flush Moulded Strain Relief: The flush moulded design allows the patch cables to be installed side by side in high-density network switches. The strain relief allows the cables to move without damaging the cable or breaking away from the connector while it is plugged in a device
This product has been tested and found to comply with the applicable electrical transmission characteristics specified in: ISO/IEC 11801 ED.2 and ANSI/TIA-568-C.2
IEC 60332-1-2 RoHS Compliant and 3P Verified CAT6A cable Injection moulded snagless connectors Screened / Foil twisted pair Low Smoke Zero Halogen 4x 26 AWG Copper 600MHz RJ45 Shielded connector with 50µ Inch Gold Plate
012823
80 Items
Data sheet
Type
Cable
Ends
RJ45
Features
Low Smoke Zero Halogen
Suitable for CCTV
Suitable for POE
Suitable for VOIP Phones
