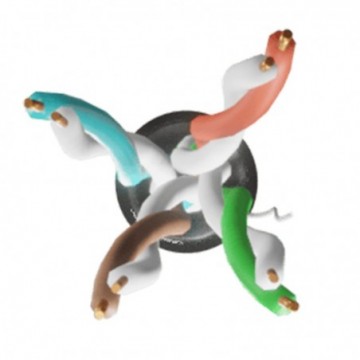

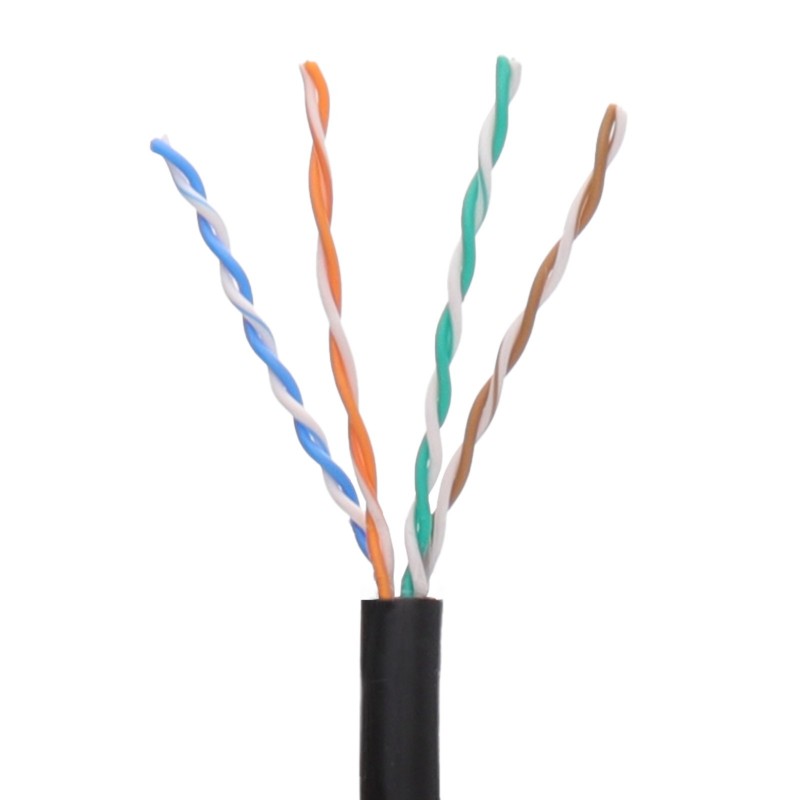

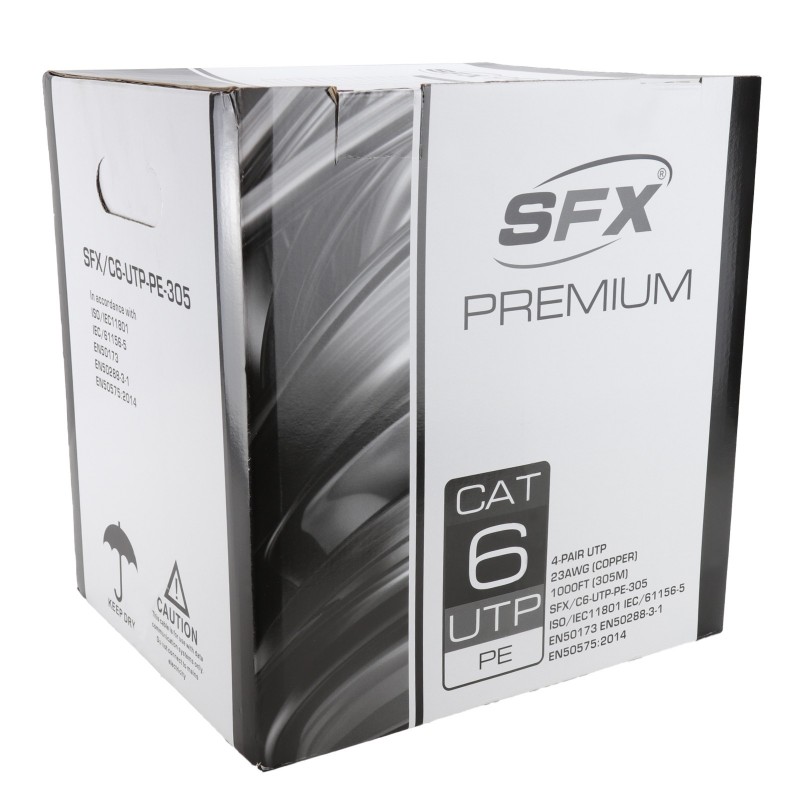

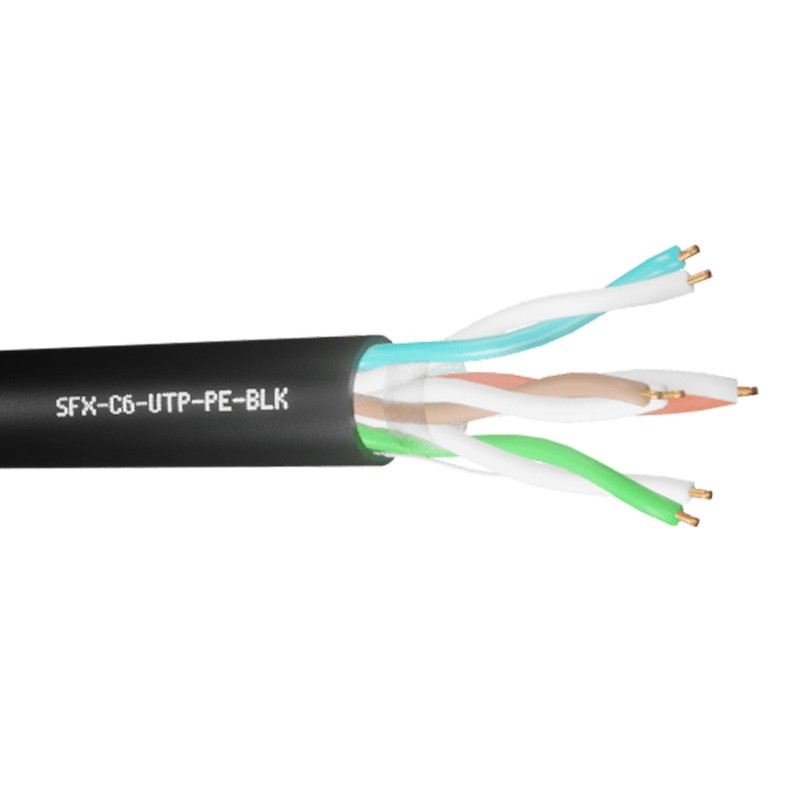

Introducing the SFX External CAT6 Copper Ethernet Network Cable Reel PE a versatile solution for your networking needs. With its durable construction and high-quality materials this cable reel is designed to deliver reliable performance for outdoor environments. The rugged PE exterior provides protection against environmental factors ensuring long-lasting durability.

Featuring Category 6 performance this cable supports high-speed data transmission up to 1 Gigabit per second making it ideal for demanding applications such as HD video streaming online gaming and file transfers. The generous 305-meter length offers flexibility for various networking projects eliminating the need for multiple splices or connectors. Installation is quick and easy thanks to the unshielded twisted pair (UTP) construction and 24AWG copper conductors. With its black color and sleek design this cable reel blends seamlessly into any environment. Upgrade your network infrastructure with confidence using the SFX External CAT6 Copper Ethernet Network Cable Reel PE.

Specifications
  • Conductor: Bare Copper
  • Conductor Diameter (mm): 0.53 +/-0.01 0.54 +/-0.020
  • Insulation: HDPE
  • Insulation Thickness (mm): 0.18
  • Insulation Colour: Blue/White/BlueOrange/White/OrangeGreen/White/GreenBrown/White/Brown Insulation Thickness 2 (mm): 1.02 +/-0.08
  • Nylon Rip-Cord: White 210D
  • Jacket: PE (UV resistant)
  • Jacket Colour: Black RAL 9005
  • Jacket Thickness (mm): 0.55 +/-0.03
  • Overall Diameter (mm): 6.10 +/-0.03
  • Overall Sheath: PE
  • Overall Colour: Black
  • Standards: ISO/IEC 11801 ANSI/TIA 568-C.2 CE2014/30/EU LVD
  • 2014/35/EURoHS2 2011/65/EU
  • CPR: Fca
  • Application: External Data transmission up to 1Gb/s (10Gb/s up to 37m).
  • AWG: 23 24
  • Filler: Cross member
  • Drain Wire: N
  • Clear Polyester Tape > =115%
  • Impedance (1-100MHz) 100O +/-15O
  • Weight: 11.65 kg
  • Flame Propagation Standard: Fca
SFX
012773
4 Items

Data sheet

Type
Cable
External
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Parent
#SFXExtReels
Colour
Black
Features
Suitable for CCTV
Suitable for POE
Suitable for VOIP Phones
Ethernet Version
Cat6
Length
305m
