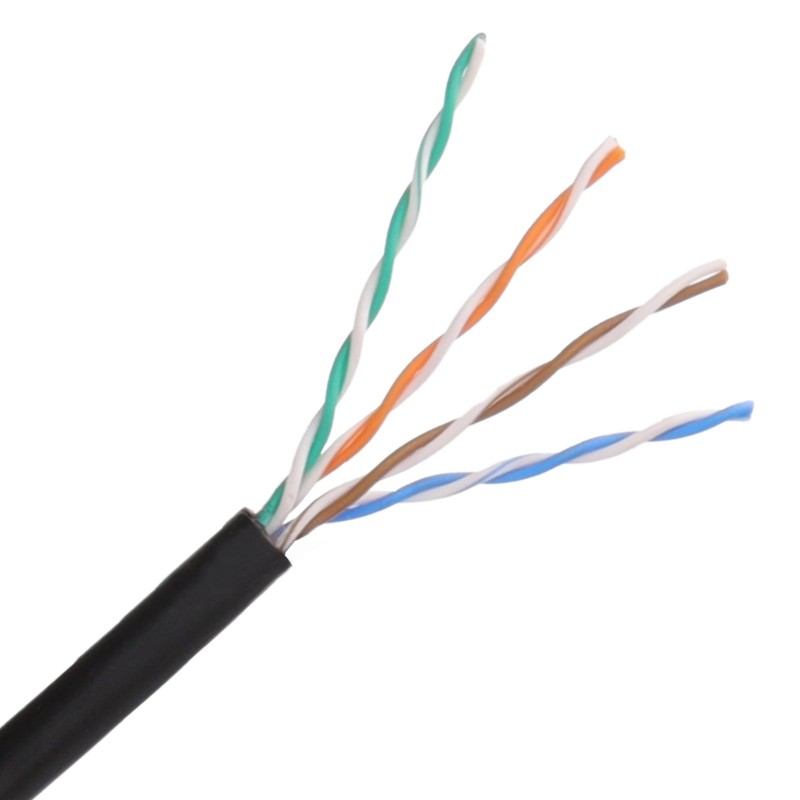

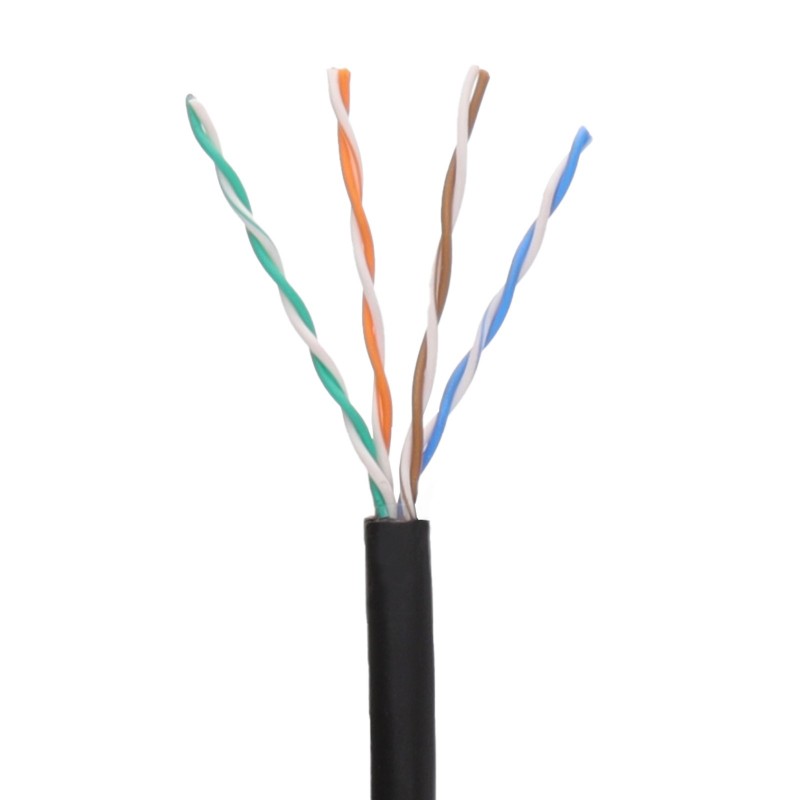

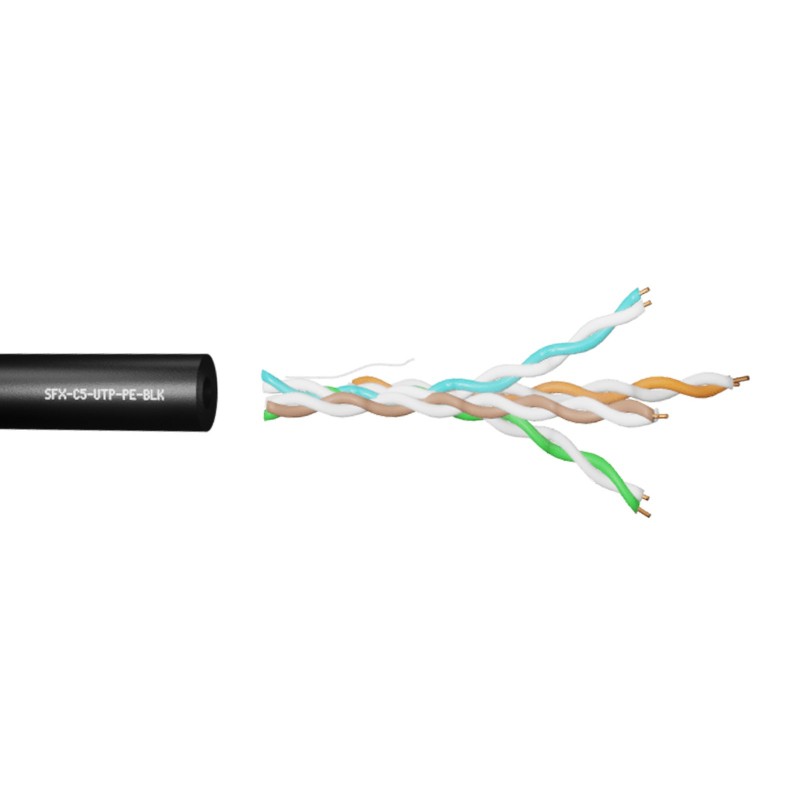

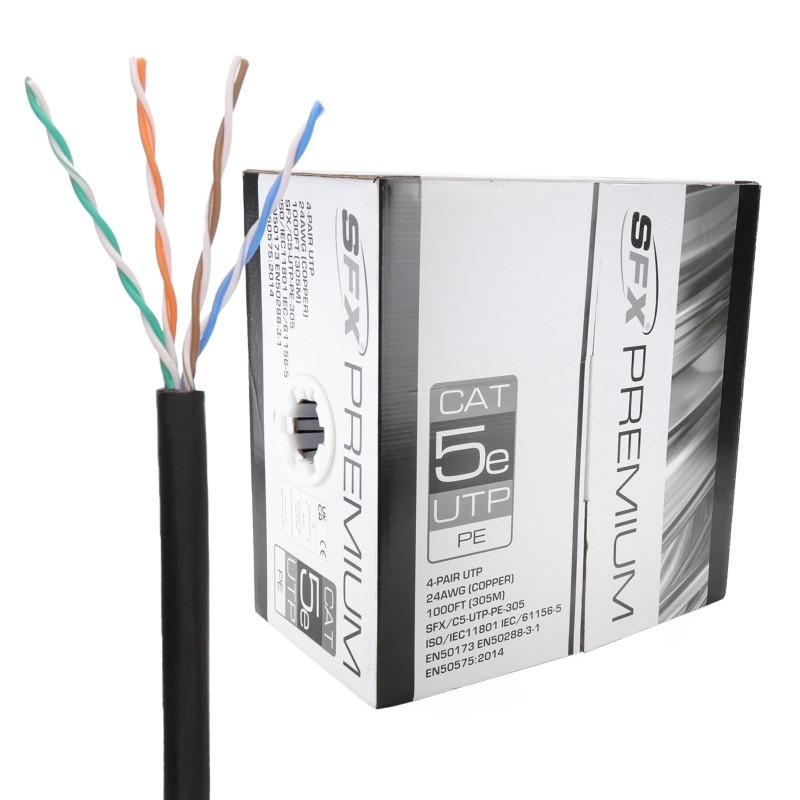

Elevate your networking setup with the SFX External CAT5e Copper Ethernet Network Cable Reel. Designed for outdoor use this durable cable reel boasts a rugged exterior jacket for resilience against the elements. With Category 5e performance it ensures high-speed data transmission of up to 1 Gigabit per second perfect for HD video streaming online gaming and file transfers.

The 305-meter length provides flexibility for various projects without the need for multiple splices or connectors. Its compact and lightweight design allows for easy transportation and maneuverability on-site. Featuring unshielded twisted pair (UTP) construction and 24AWG copper conductors installation is a breeze with colour-coded wires for simple identification and termination. Versatile and reliable this cable reel is ideal for commercial buildings residential homes outdoor environments and more catering to a wide range of networking needs.

Specifications:
  • Conductor: Bare Copper
  • Conductor Diameter (mm): 0.47 +/-0.01 0.47 +/-0.02
  • Insulation: HDPE
  • Insulation Thickness (mm): 0.18
  • Insulation Colour:
  • Blue/White/BlueOrange/White/OrangeGreen/White/GreenBrown/White/Brown
  • Insulation Thickness 2 (mm) 0.88 +/-0.08
  • Nylon Rip-Cord: White 210D
  • Jacket: PE (UV resistant)
  • Jacket Colour: Black RAL 9005
  • Jacket Thickness (mm): 0.49 +/-0.03
  • Overall Diameter (mm): 4.80 +/-0.03
  • Overall Sheath: PE
  • Overall Colour: Black
  • Standards: ISO/IEC 11801 ANSI/TIA 568-C.2 CE2014/30/EU LVD 2014/35/EURoHS2 2011/65/EU
  • CPR: Fca
  • Application: External Data and CCTV transmission up to 100Mb/s
  • AWG: 24
  • Impedance (1-100MHz): 100O +/-15O
  • Drain Wire: N
  • Weight: 7.95 kg
  • Flame Propagation Standard : Fca
  • Clear Polyester Tape: > =115%
SFX
012772
7 Items

Data sheet

Type
Cable
External
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Parent
#SFXExtReels
Colour
Black
Features
Suitable for CCTV
Suitable for POE
Suitable for VOIP Phones
Ethernet Version
Cat5E Copper
Length
305m
