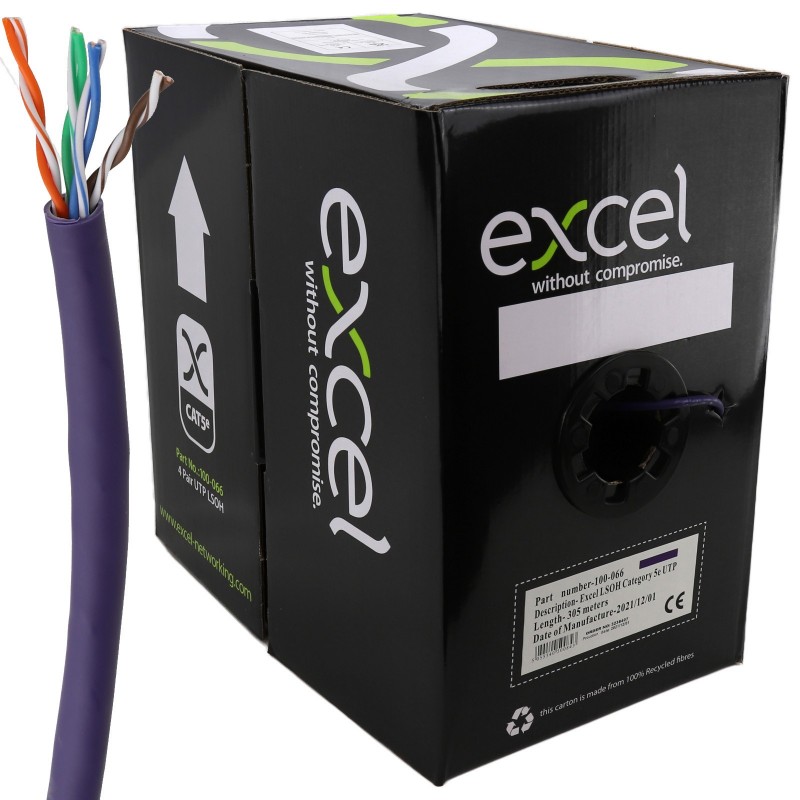

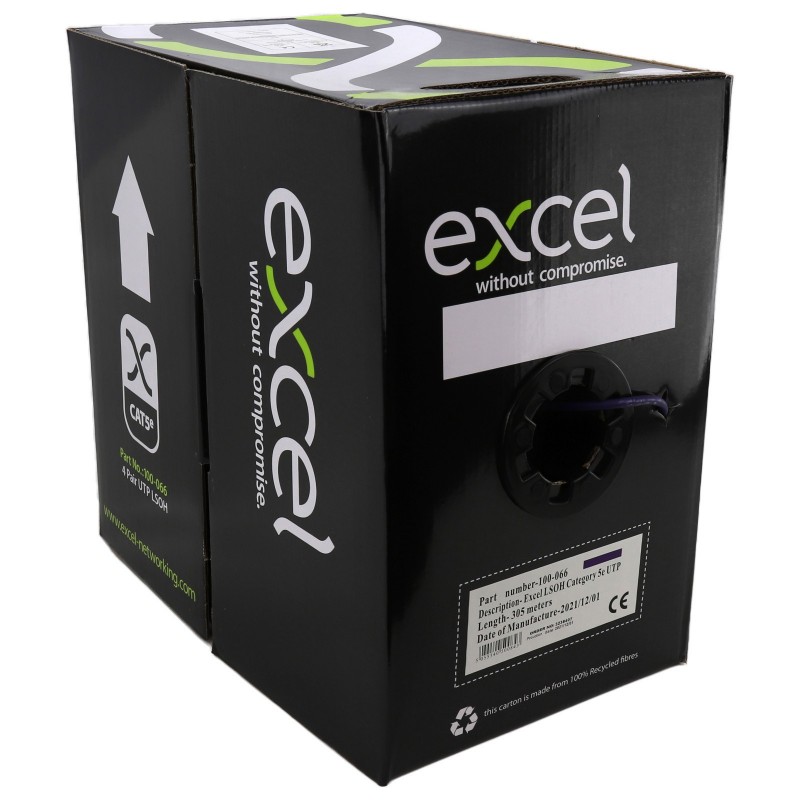

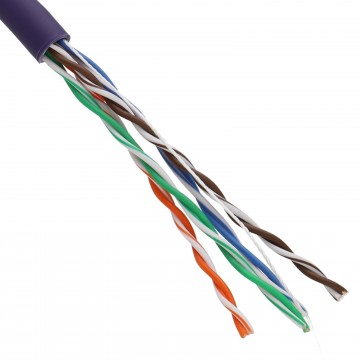

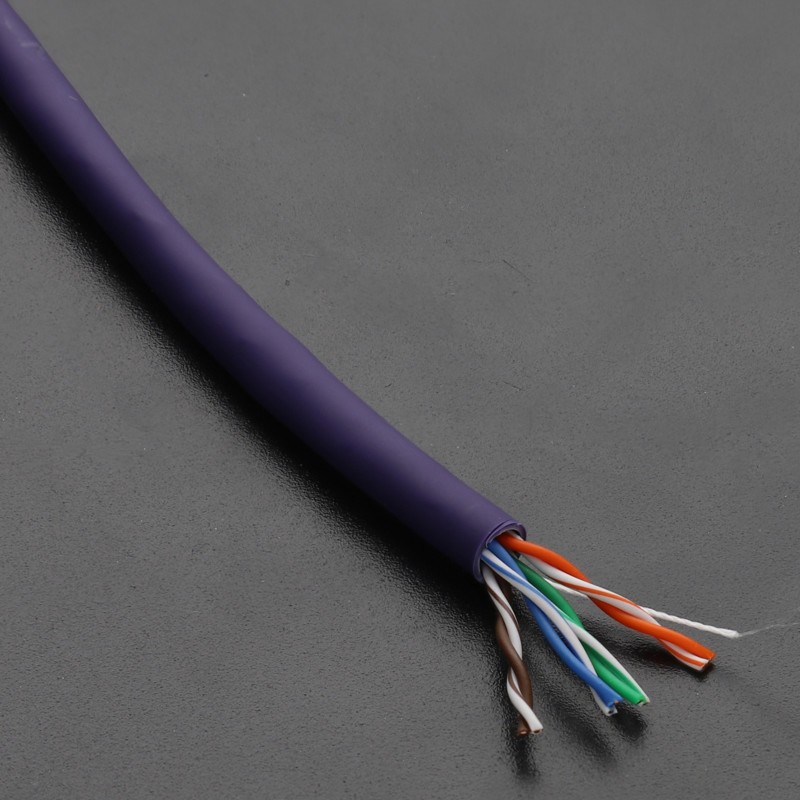

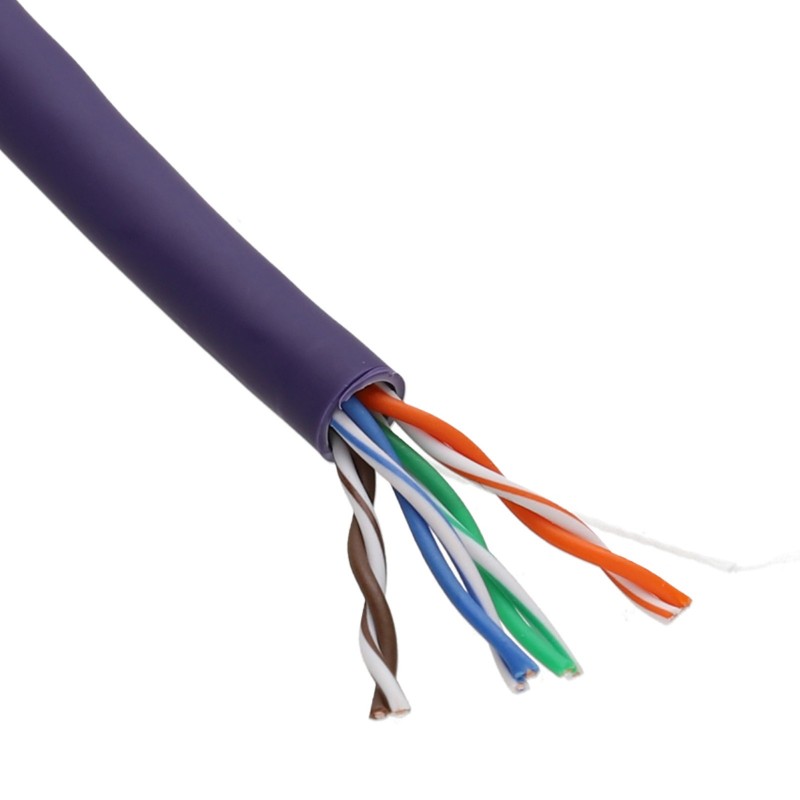

Excel solid Cat5e ethernet cable U/UTP LSOH CPR Euroclass Dca are manufactured and tested to ISO 11801 EN 50173 and ANSI/TIA‐C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.

The whole cable is produced in a LSOH sheath which is metre marked and labelled with part code and DoP information.

Cat5e Solid Copper Cable
U/UTP No Overall Screening
No Conductor Screening
Outer sheath colour Violet
Reaction-to-fire class according to EN 13501-6: Dca
Smoke development class according to EN 13501-6: s2

Key Features
Conductor surface: Bare
AWG size: 24
Conductor category: Class 1 = solid

Total number of cores: 8
Stranding element: Pairs
Specification core insulation: PE


Low Smoke Cable
Low smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.

Euroclass Cable!
Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.

Excel
011601
4 Items

Data sheet

Type
Cable
Features
European
Suitable for CCTV
Suitable for POE
Suitable for VOIP Phones
Length
305m
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Colour
Violet
Parent
#EXCEL-5E-REELS
Ethernet Version
Cat5E Copper
