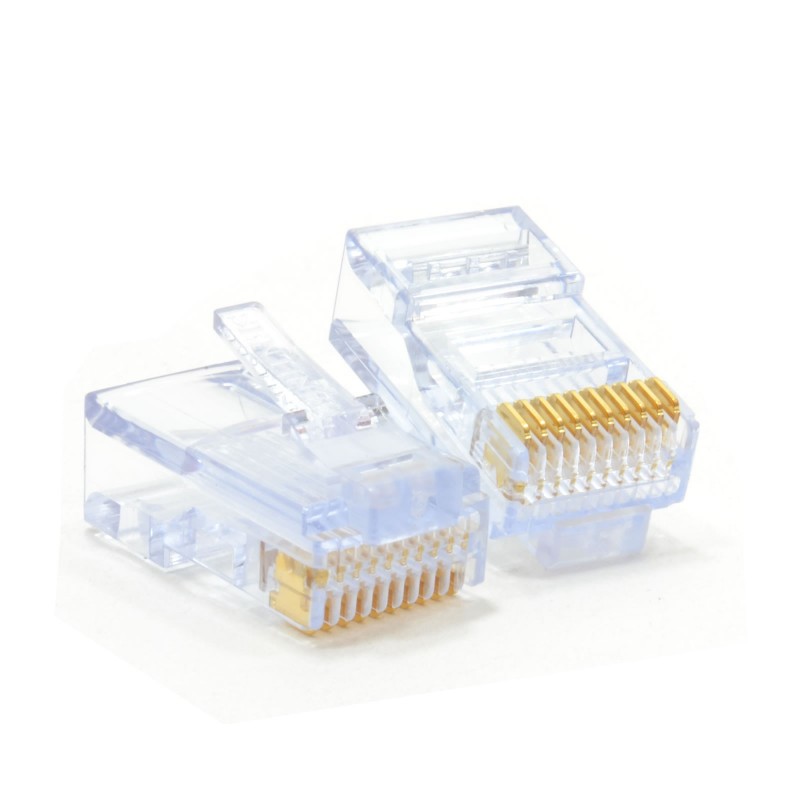

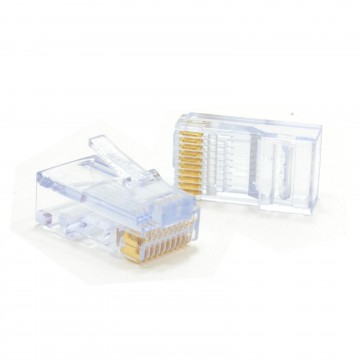

A high quality modular plug aimed at the professional data and communications user.

Precision contacts with true insulation piercing IDC blade contacts Chemically honed contact surfaces for smooth finish and long contact life Designed to accept solid or stranded wires from 28 to 24AWG

RJ50 PLUGS SOLID/STRANDED WIRE ROUND Connector Type: RJ50X Gender: Plug Approval Category: UL 94V-0 Contact Resistance: 10mohm Current Rating: 1.5A Insulation Resistance: 500Mohm Operating Temperature Max: 125 degreeC Operating Temperature Min: -40 degreeC Voltage Rating V AC: 150V Wire Size AWG Max: 24AWG

Technical Data
Housing Polycarbonate UL94V-0 Contact 50μ inch Gold Plated Phosphour Bronze Temp. Range -40 degreeC to +125 degreeC Voltage Rating 150V ac max. Current Rating 1.5A Insulation Resistance 500MΩ Contact Resistance 10mΩ max.

This is a RJ50 CRIMP and NOT RJ45 For our range of RJ45 crimps please see quicksearch the following:
Cat 5: 03925
Cat 6: 03252
007271
6 Items

Data sheet

Type
Cable
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Ends
RJ48
