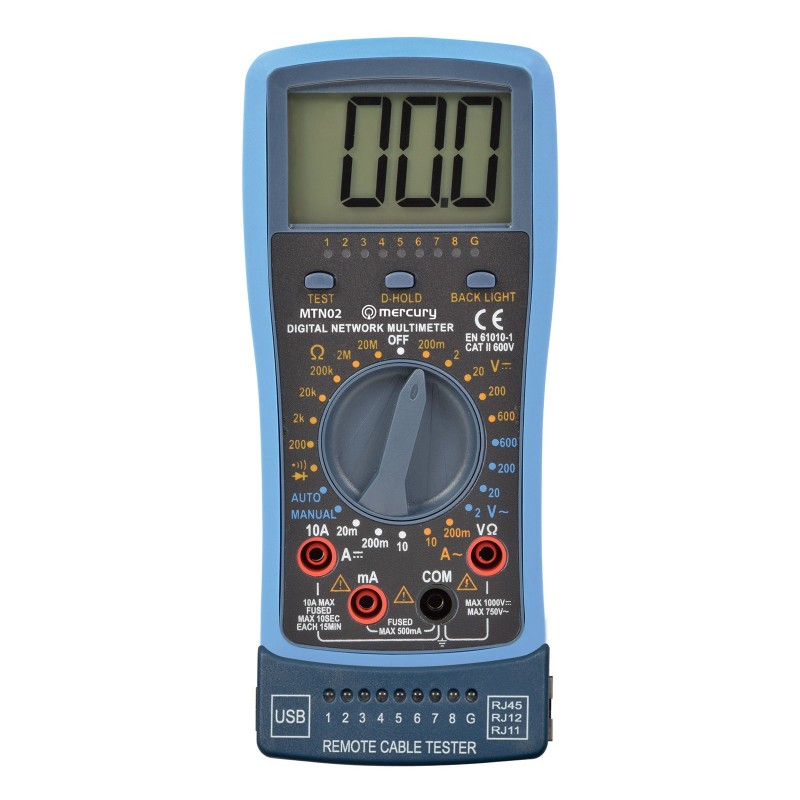

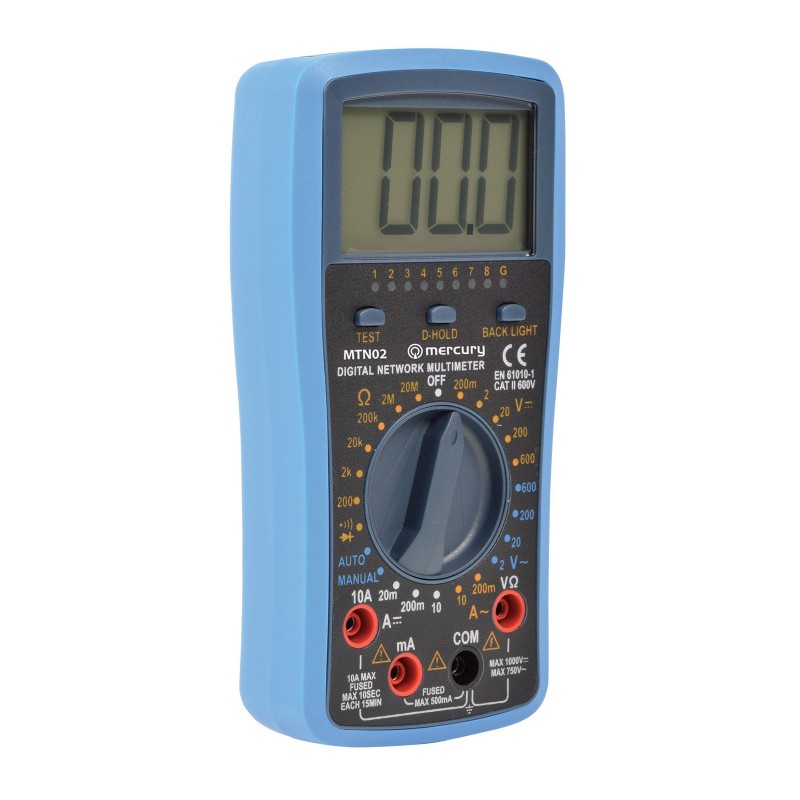

Professional Digitial Multimeter USB and Network RJ11/RJ12/RJ45 Cable Tester

A professional digital multimeter with network and USB tester that offers 23 testing ranges and 6 functions and comes supplied ready to use in a shockproof rubber holster with shrouded testing probes and battery. The cable testing function uses a sequence of LED s on the main unit and remote unit to test lengths of RJ11 RJ12 RJ45 or USB cables for continuity and wire/pin-related faults. The large 1.25 inch 3.5 digit LCD display is easy to read and comes with additional backlight for working in darker environments.

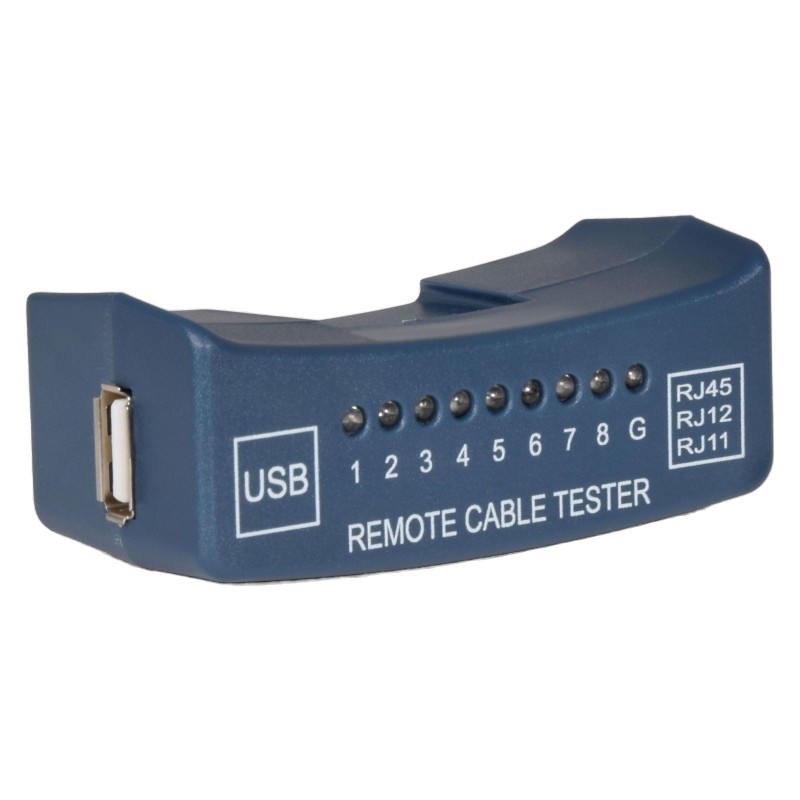

Network and USB cable test function with remote unit for RJ11 RJ12 RJ45 and USB
3.5 Digit 1999 count large 1.25 inch LCD display with backlight
2V-600V AC Voltage 200mV-600V DC Voltage 10A AC/DC current and resistance ranges
Diode and continuity test functions


Low battery indicator
Complies with EN61010 - 1:2010
Supplied with shrouded test leads shockproof rubber holster and 9V PP3 battery

Power supply 9Vdc (1 x PP3 supplied)
AC current 200mA - 10A
DC current 20mA - 10A
AC voltage 2V - 600V
DC voltage 200mV - 600V (Auto ranging)

Resistance 200 Ohms - 20M Ohms
Test lead length 1000mm
Dimensions 190 x 85 x 35mm
Weight 322g (including battery)
