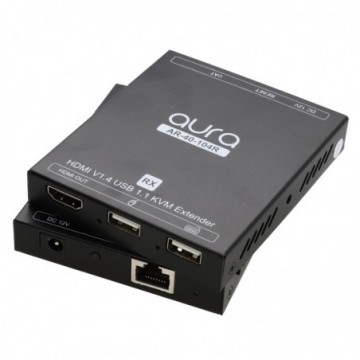

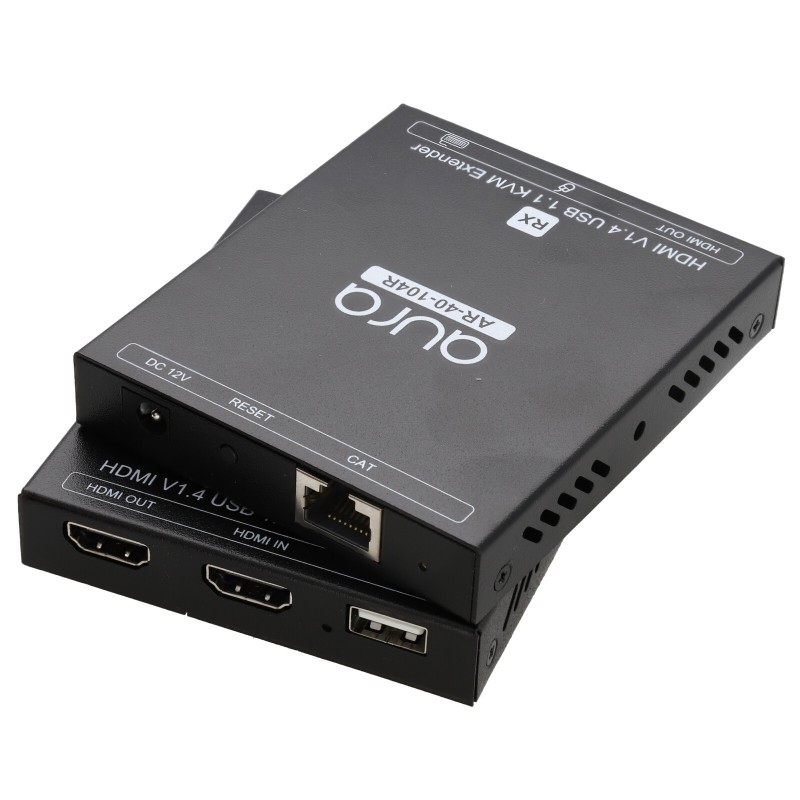

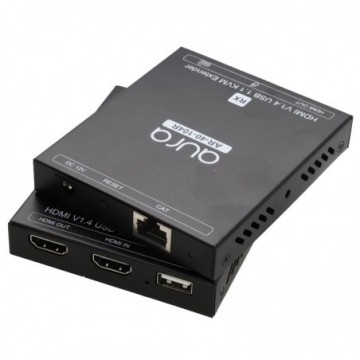

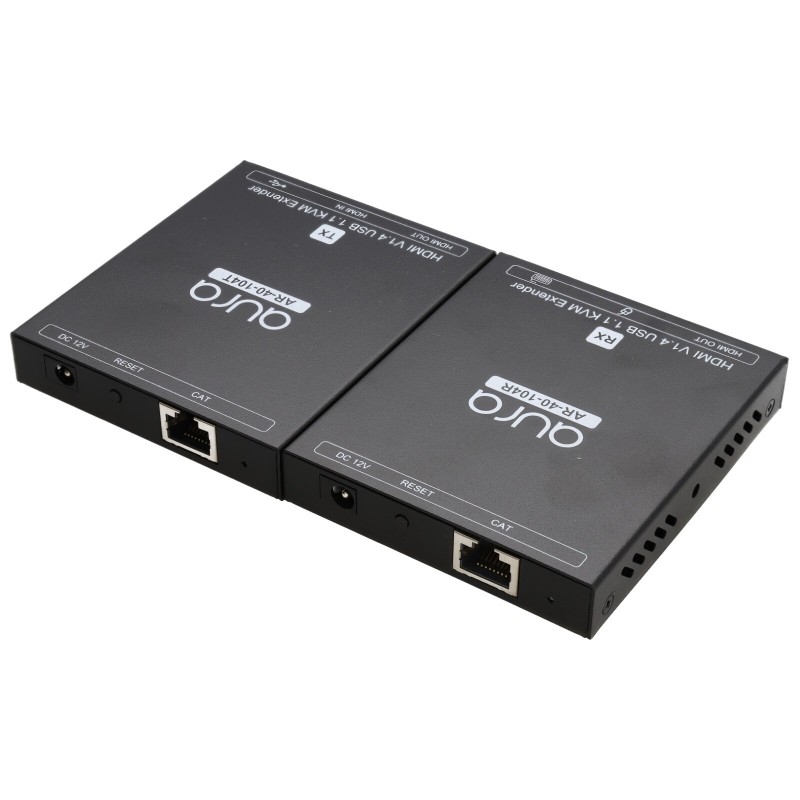

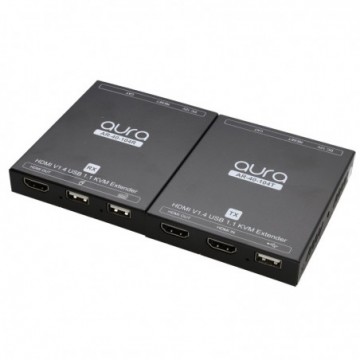

Aura HDMI 4K 30Hz & USB KVM Extender over RJ45 Network Cable with HDMI Out 120m

This HDMI USB KVM extender enables control of a workstation such as a DVR/NVR or PC with keyboard and mouse whilst viewing the video source up to 120m away from the workstation or PC. It extends an HDMI signal between Transmitter and Receiver over a single CAT6 cable and supports two USB devices in the reverse direction. 4K at 30Hz HDMI video signals up to 120m including HDCP 1.4. Supports 2x USB 1.1 signals from receiver back to transmitter for KVM functions.

HDMI V1.4 4K at 30Hz 4:4:4 HDCP 1.4
Extension up to 4K to 120m including USB
HDMI local loop out
PoE Tx Powers Rx 12V DC
Supports 2x USB 1.1 to 120m
Only requires a single Cat6 link

Extension Range:
4K 30Hz - 120m
1080p -120m


TX Unit:

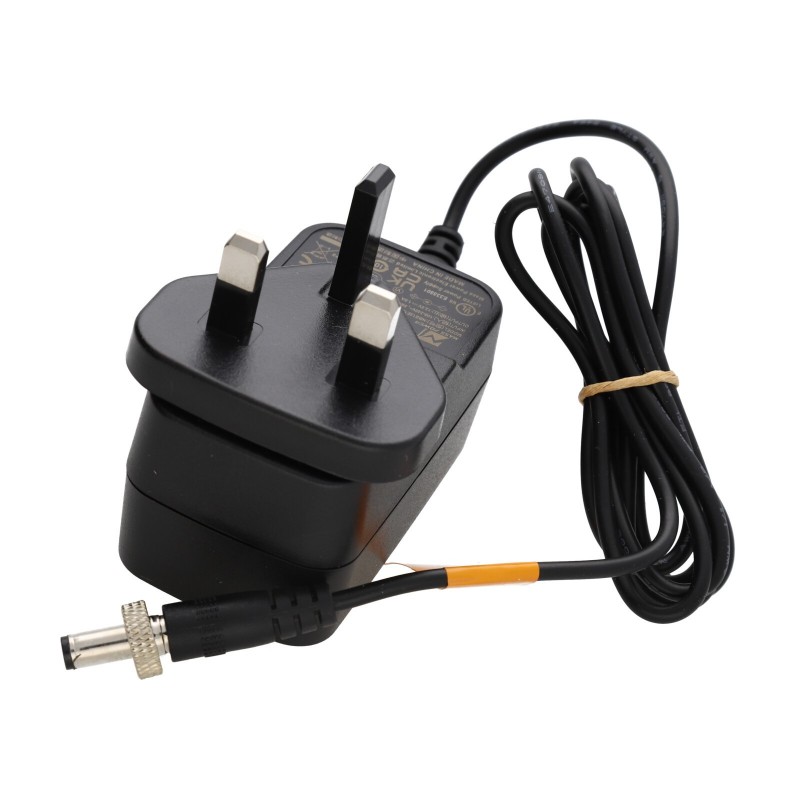

DC 12V (Power Supply Provided)
Cat6 RJ45 Socket
HDMI Input
HDMI Output
USB A female Socket
Please Note a USB A to A cable will be required (Not Supplied)


RX Unit:
DC 12V (Not required)
Cat6 RJ45 Socket
HDMI Output
USB A female for Mouse
USB A Female for Keyboard
Please Note: Keyboard and Mouse not supplied
