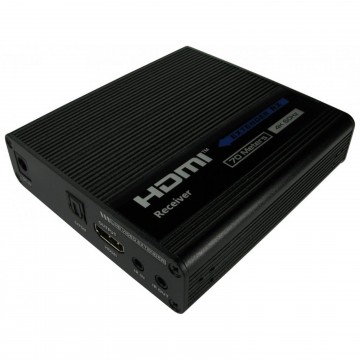

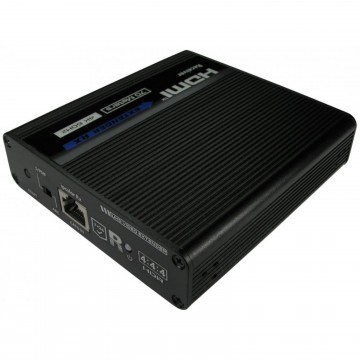

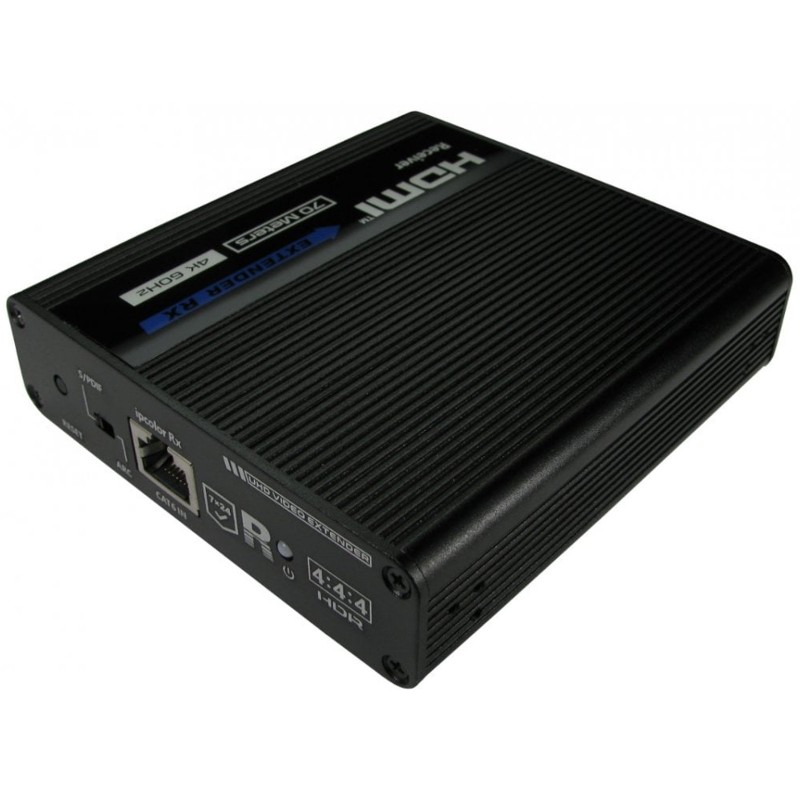

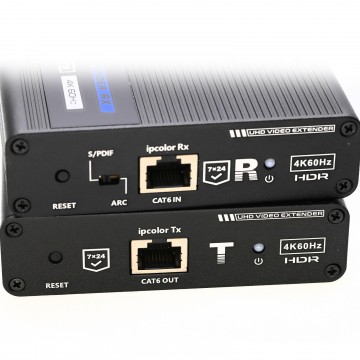

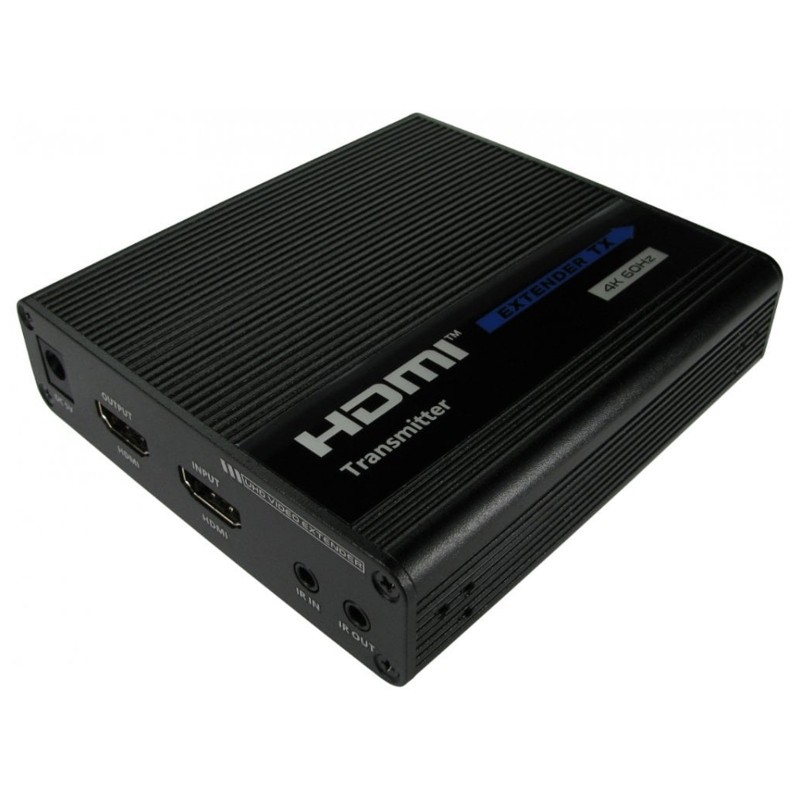

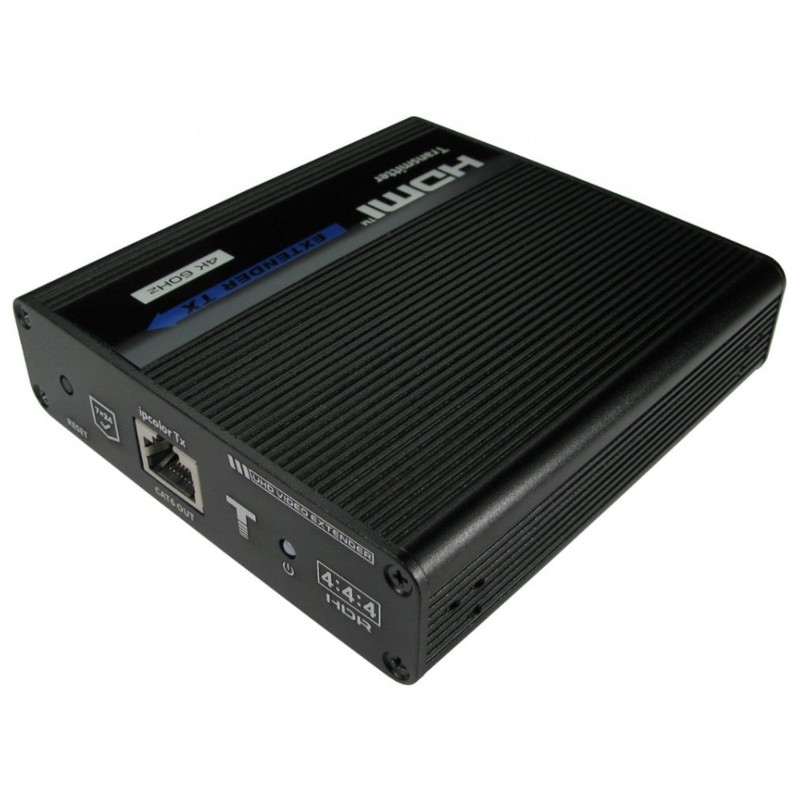

The HD-EX270 HDMI extender allows you to extend the distance of your HDMI 2.0 signal up to 70m via a single Cat6 / Cat6A / Cat7 Ethernet cable. The extender supports resolutions of up to 2016p at 60Hz whilst also supporting High Dynamic Range with HDR10. It also supports I/R pass through via the supplied adapters.
HDMI Version: HDMI 2.0 (HDMI 1.4 compatible) HDCP Version: HDCP 2.2 (HDCP 1.4 compatible) Transmission Medium: Cat6 / Cat6A / Cat7 Transmission Distance: Up to 70 metres Video Bandwidth: 18Gbps Max HDMI Input Cable Length: 8m (24AWG) Max HDMI Output Cable Length: 8m (24AWG) Audio Support: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH

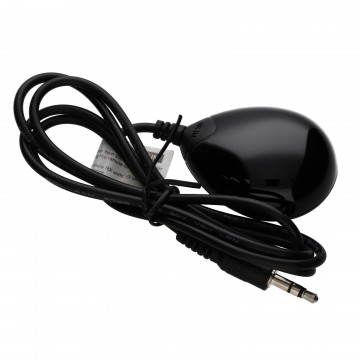

IPcolour 4K 60Hz HDR Zero Latency Bi-Directional IR Passback 70 Meter Range S/PDIF ARC Lightning Protection Surge Protection ESD Protection
011359
4 Items
Data sheet
Type
Cable
Length
70m
Country of Origin
China
RoHS Compliant
Yes
Ends
HDMI
RJ45
HDMI Version
HDMI v2.0
The HD-EX270 HDMI extender allows you to extend the distance of your HDMI 2.0 signal up to 70m via a single Cat6 / Cat6A / Cat7 Ethernet cable. The extender supports resolutions of up to 2016p at 60Hz whilst also supporting High Dynamic Range with HDR10... [see below for full description]
