Armoured Outdoor AOC (Active Optical Cable)
Super slim armoured HDMI Active Hybrid Cable with only 3.8 mm OD and short HDMI plug the most slim Armoured HDMI interconnection solution on the market.

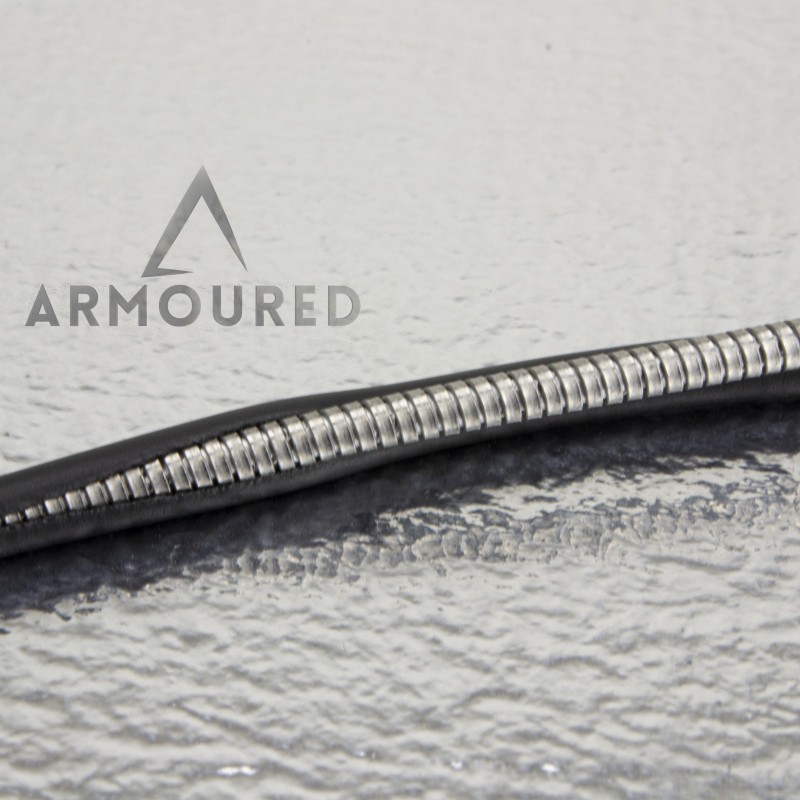

A tough TPU Sheath with Steel armoured core to protect. The TPU sheath provides a high abrasion resistance that prevents scuffing or scratching. The TPU sheath is also waterproof and UV resistant making this cable perfect for outdoor runs as well as resistant to oil and grease. The Steel armour helps protect the cable from damage.

The tough TPU sheath is waterproof and UV resistant so a great solution if you need to run outdoors. The Stainless Steel Armour helps protect the cable from damage.

Supporting HDMI Data Rates of 48Gbps. Strong construction flexible and ultra-small housing. Long-term bending radius (38 mm) hybrid cable. With our advanced optical engine embedded The HDMI Hybrid Cable provides full HDMI signal integrity available in a range of lengths with plug and play design. No external power is required.

Our AOC (Active Optical Cable WITH POWER! ) HDMI cables allow you to run a very thin (cable diameter approx 3.8 mm) over extremely long distances (up to 100 m) Our range of AOC cables also carry power so no additional adapters are required!

This range of 8K AOC cables support resolutions of up to 8K 60Hz (7680 × 4320) but are backwardly compatible with 4K at 120Hz 60Hz and 30Hz. Perfect for the latest gaming consoles such as PS5 or XBOX X series or any other device that requires up to 8K 60Hz resolutions.

Backwardly compatible with older HDMI devices 4K @120/60 or 30Hz. 1080P resolutions or 720P.
Not all 8K HDMI cables support the true 48gbps at 60 frames resolutions and if they do you re limited to how long you can run the cable. If you re looking for a solution to run the latest in HDMI technology over long distances or bury your cable in the wall then this is the cable for you. The slimline cable design allows for more flexible cable runs compared to ACTIVE COPPER HDMI cables and the fibre optic cable carries the signal faster at longer distances. These cables are also backwardly compatible with previous versions of HDMI.

So what are the advantages of running a fibre optical cable over a copper cable? Fibre cables are much stronger than copper cables much thinner and more flexible. Fibre cables handle weather conditions better than a copper cable ensuring you don t have data stall issues which can cause problems when sending signals over long distances. Overall a fibre cable is more reliable than a copper cable especially over long distances.

Armoured Cable
3.8mm OD
Ultra slim design (HDMI Housing approx 30mm when connected)
HDMI Active Optical Cable
HDMI A Male to HDMI A Male
Supports 8K@60Hz or 4K@120/60 and 30Hz
Supports Chroma Subsampling 4:4:4
Supports 48Gbps
Metal Connectors
TPU Jacket

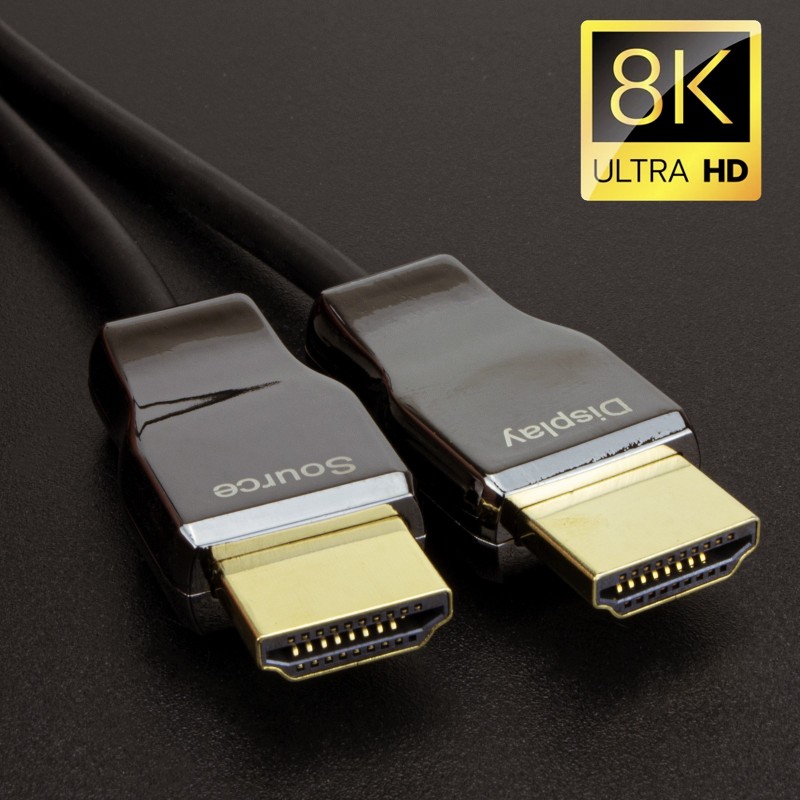

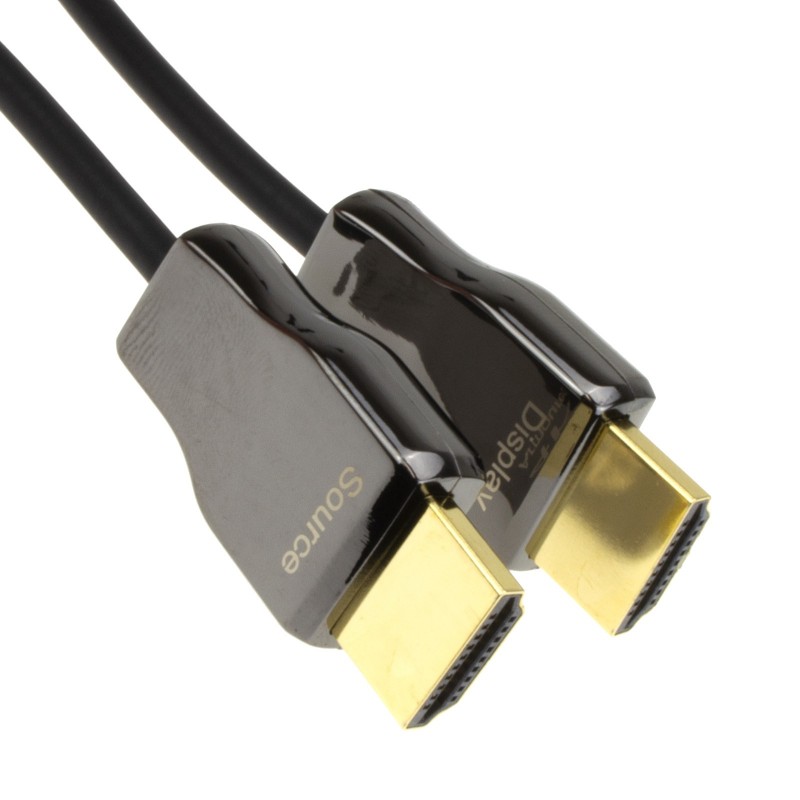

Please Note: This cable must be connected with the Source connector connected to the device & Display connector connected to the display.

Power Supply Voltage: Min 4.75v / typical: 5.0v / Max 5.25v
Operating Temp: Min: -40C / Max: 80C
011003
2 Items

Data sheet

Type
Cable
Colour
Red
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Parent
#armoured_hdmi2.1
Length
20m
Ends
HDMI
HDMI Version
HDMI v2.1
