HDMI Active Optical Cable
HDMI A Male to HDMI A Male
Supports 8K@60Hz or 4K@120/60 and 30Hz
Supports Chroma Subsampling 4:4:4
Supports 48Gbps
Metal Connectors
4 Fibre cores / 7 Copper cores
Cable Outer Diameter 4.5mm

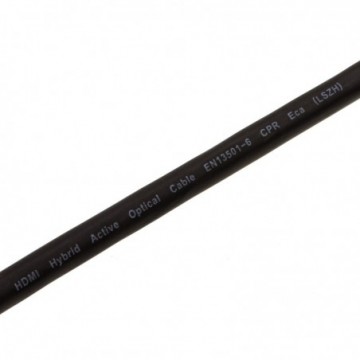

CPR rated (The CPR defines several classes that indicate the impact of cables on the spread of fire)
ECA Rated (Eca cables can safely be installed in buildings that have Basic building fire safety requirements in some regions this class is used for general installs.)
LSZH (Low Smoke Zero Halogen)


This range of 8K AOC cables support resolutions of up to 8K 60Hz (7680 × 4320) but are backwardly compatible with 4K at 120Hz 60Hz and 30Hz. Perefect for the latest gaming consoles such as PS5 or XBOX X series or any other device that requires upto 8K 60Hz resolutions.

AOC is short for Active Optical Cable which is the latest in cabling technology. AOC removes the copper conductors and replaces them with fibre optical cores and a small transmitter and receiver in the connectors. Copper cores still remain to carry power along the cable.

Why Professionals Are Choosing AOC?
The use of fibre optical cores allows the cable to be thinner and lighter
The barriers of cable length is no longer a problem
By using fibre optical cores EMC interference from power cables and lighting is no longer an issue. The cables also produce much less EMC themselves
No signal loss over long distances
No extenders boosters or runs of CAT5e needed. These simply connect to your host and device like a standard cable
Our AOC comes in frustration free packaging

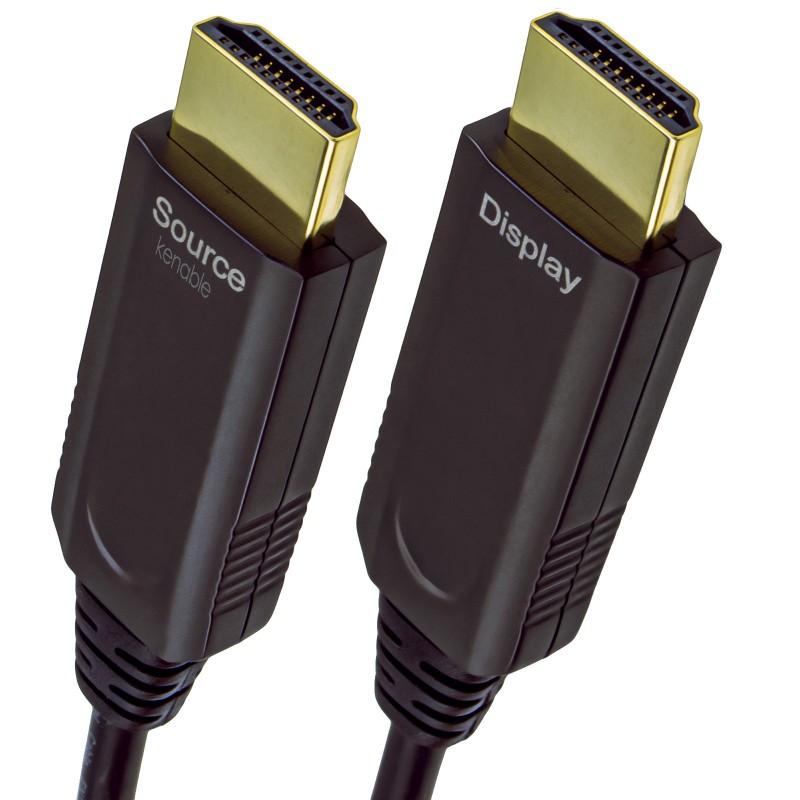

Please Note: This cable must be connected with the Source connector connected to the device & Display connector connected to the display.
010904

Data sheet

Type
Cable
Ends
HDMI
Length
15m
Colour
Black
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Parent
#HDMI-8K-AOC
HDMI Version
HDMI v2.1
