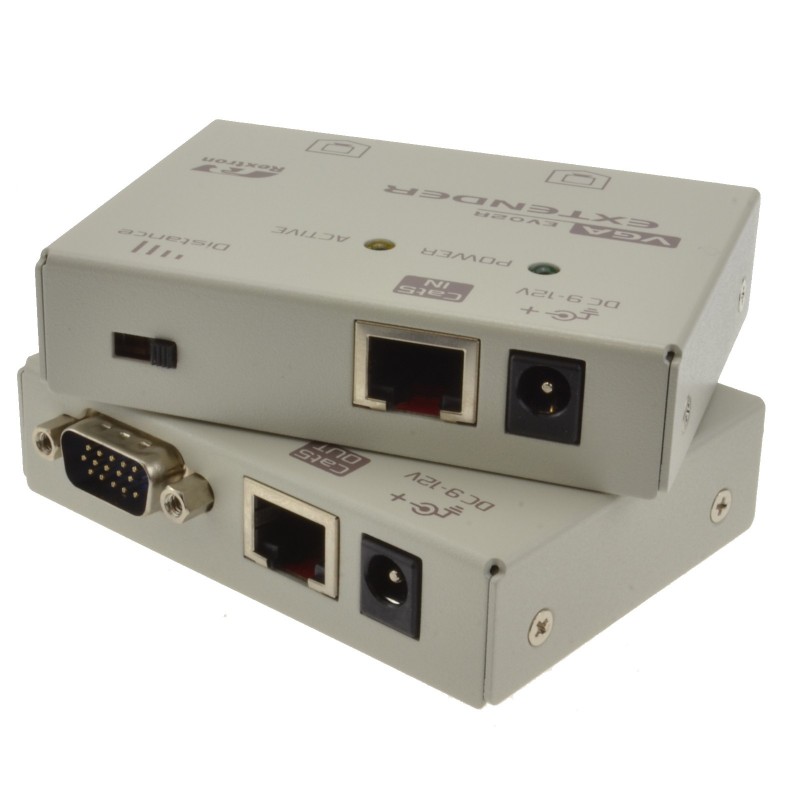

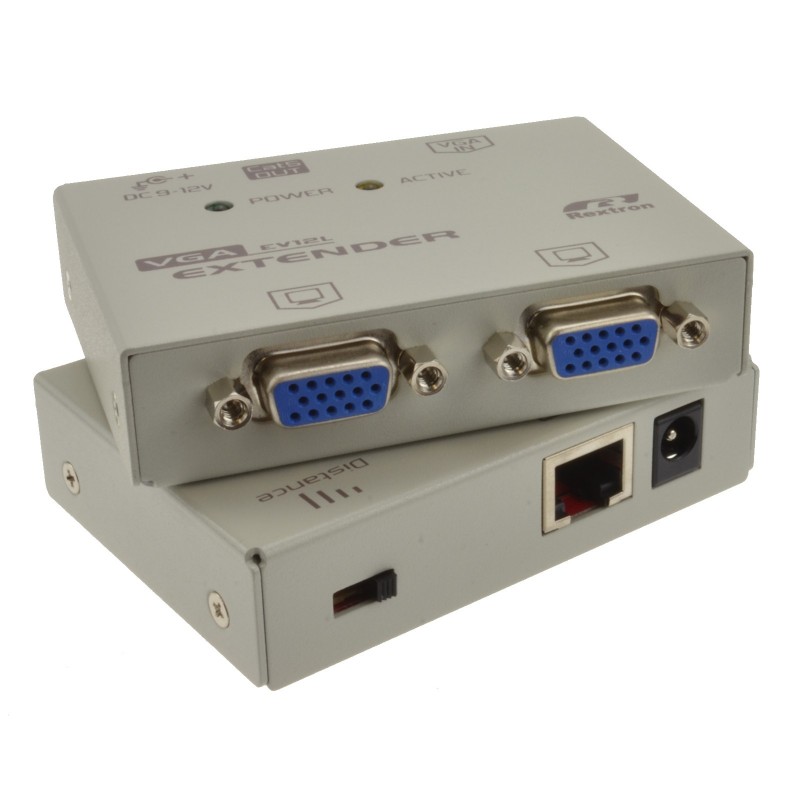

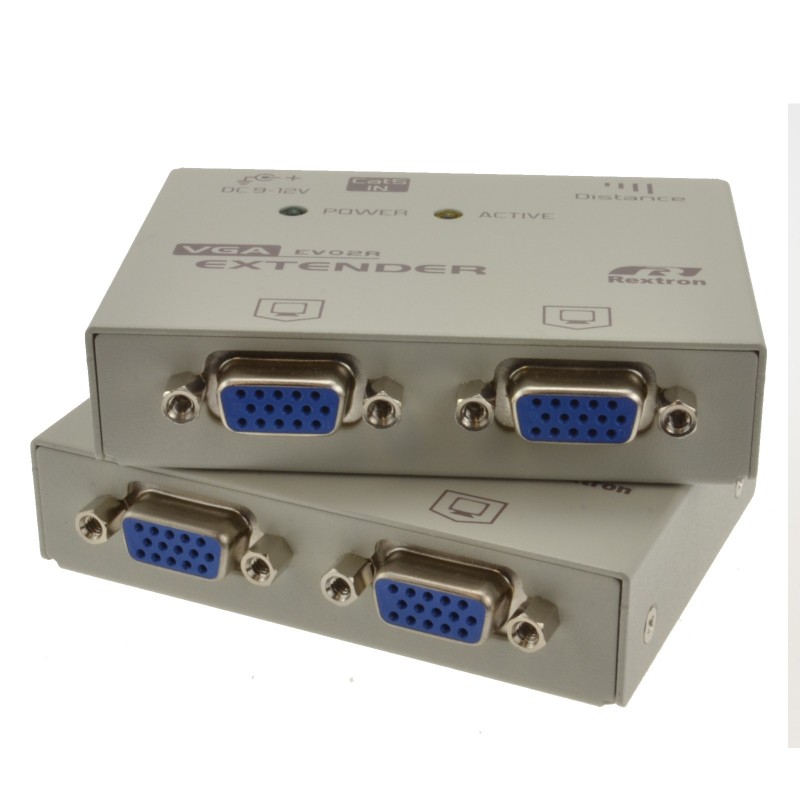

Powered VGA extender over CAT5 Send your single SVGA output to upto 4 monitors 2 local and 2 upto 150m away. Can be used with any CAT5 CAT5E or Cat6 cable. The Cat5 extender pair allows you to extend the distance between the computer system and the display monitor by up to 150 meters. The local unit of the VGA extender pair receives video signals broadcasts to two display monitors and transmits the signal to a remote unit via Cat5 cables. The remote unit receives the signal and broadcasts to upto two display monitors. ALSO AVAILABLE WITH SOUND BROADCASTING Specification:

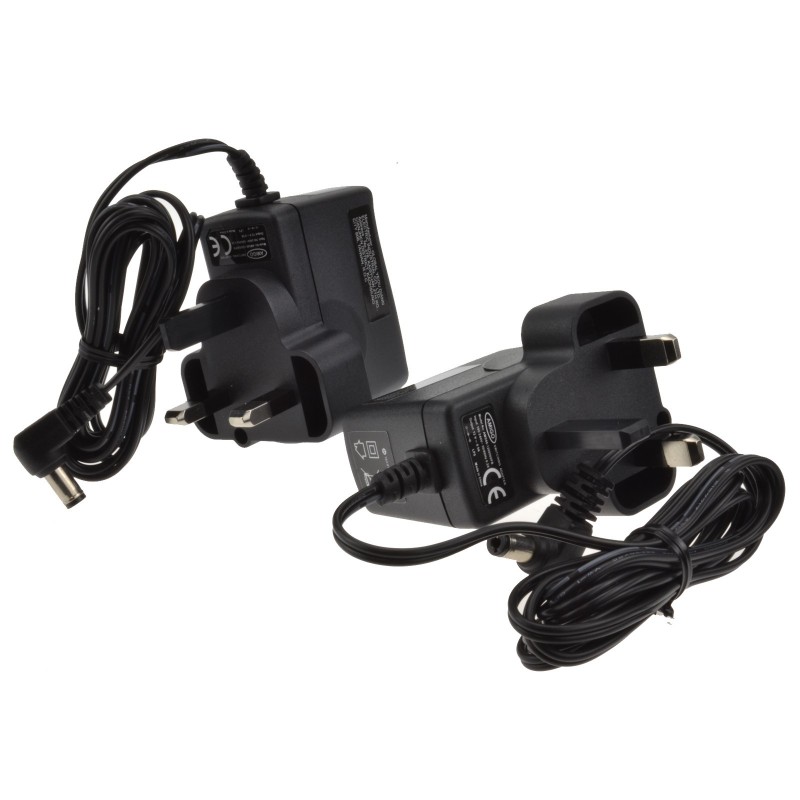

Local unit for VGA Source Extension output for VGA RJ45 CAT5 Connector : Extension output for VGA Max Distance : 150 Meters @ resolution 1024 x 768 (less with high resolution) VGA Input ports : HDB15 (male) x 1 VGA Output ports : HDB15 (female) x 2 Status indicator : Power (green) x 1 Active (Yellow) x 1 Operating Voltage : 9VDC 500mA Remote unit for VGA Extension Extension output for VGA RJ45 CAT5 Connector : Extension output for VGA Max Distance : 150 Meters @ resolution 1024 x 768 (less with high resolution) VGA Output ports : HDB15 (female) x 2 Gain control : 4-position slide switch Status indicator : Power (green) x 1 Active (Yellow) x 1 Operating Voltage : 9VDC 500mA
001305
1 Item

Data sheet

Type
Splitter
Colour
Red
Country of Origin
China
RoHS Compliant
Yes
SVHC
TBA
Ends
VGA
Length
150m
