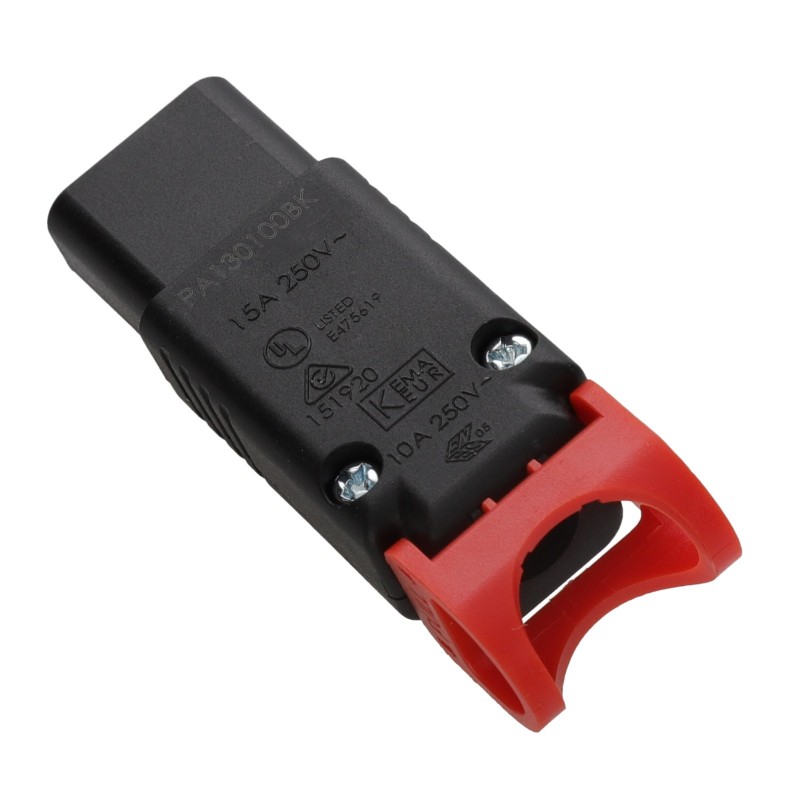

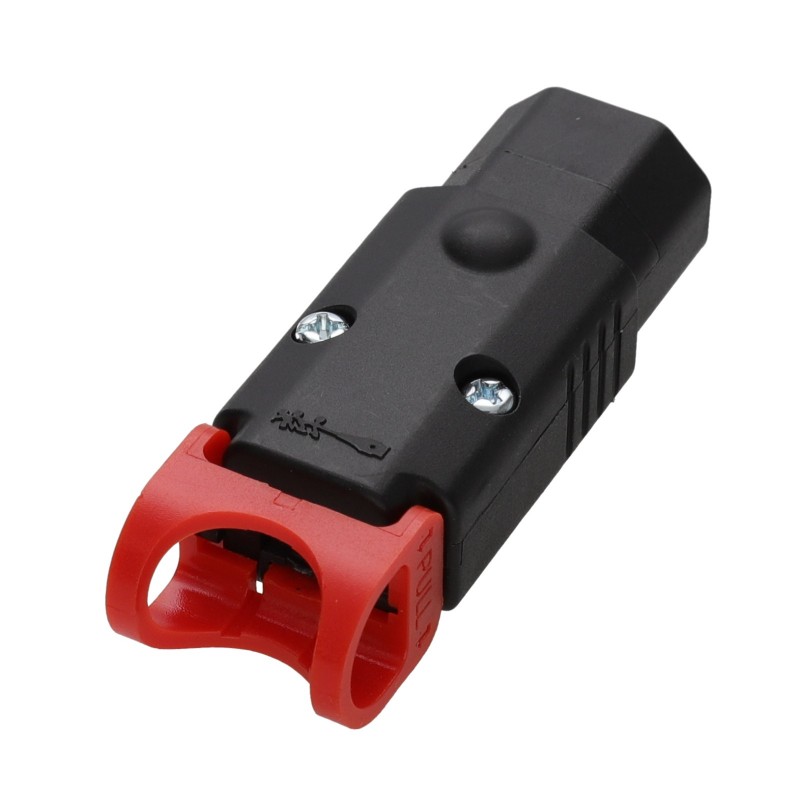

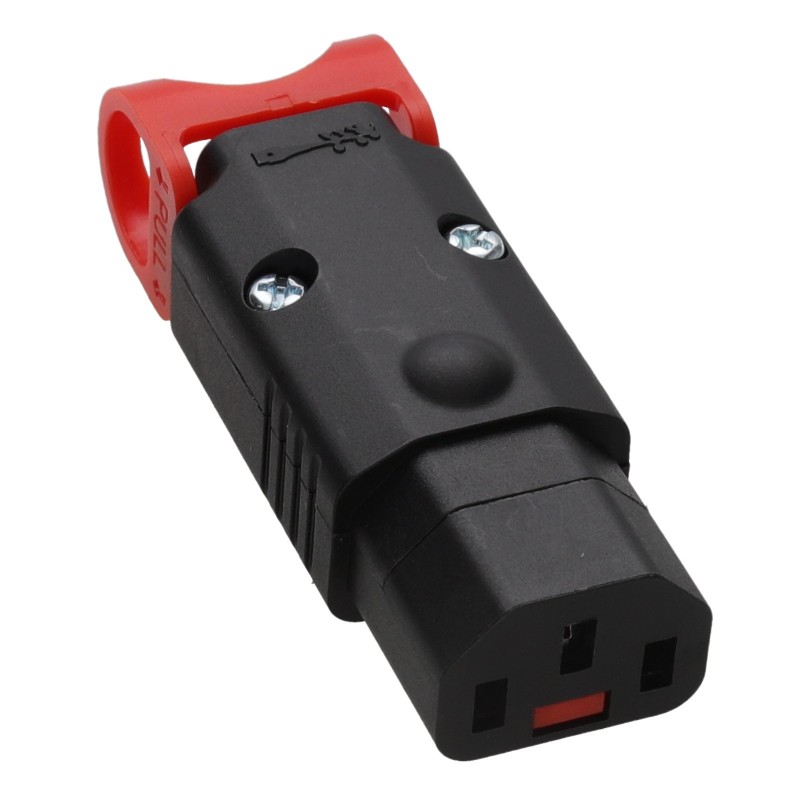

Locking IEC C13 LSZH Low Smoke Zero Halogen Rewireable Kettle Lead Plug End

A universal locking IEC C13 (Patented) connection that can connect to any IEC socket to create a locking connection (no special socket required for the locking mechanism). Perfect for permanent installations to prevent accidental disconnection of vital equipment. Ideal for protecting appliances that are vulnerable due to vibration.

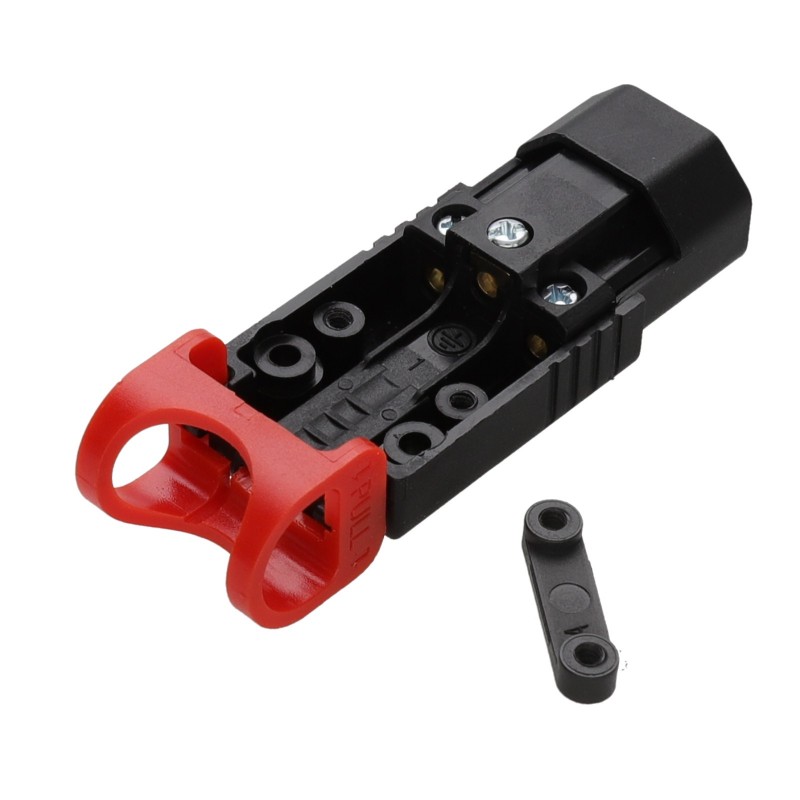

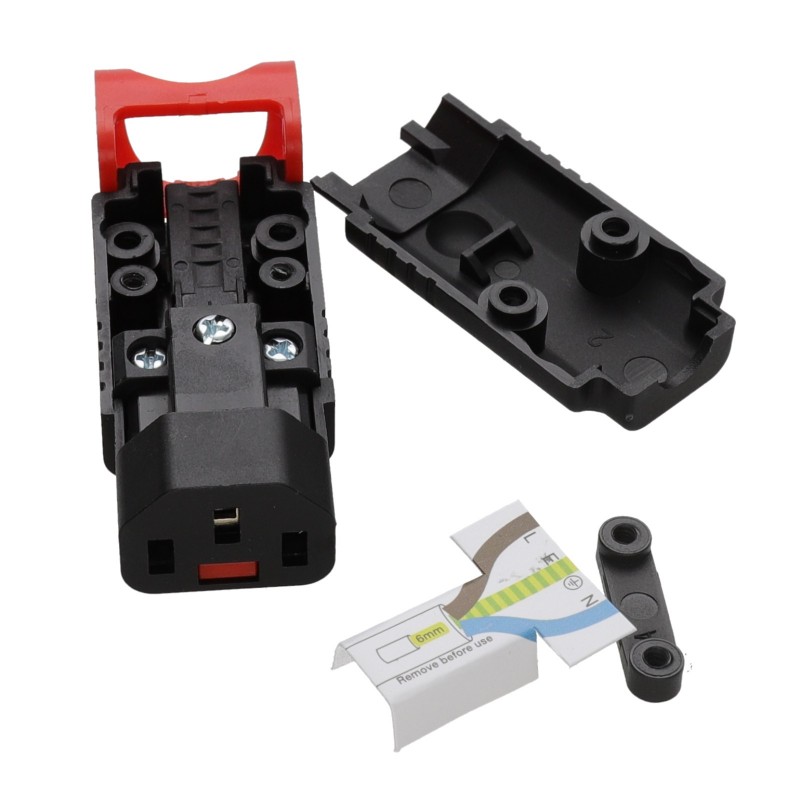

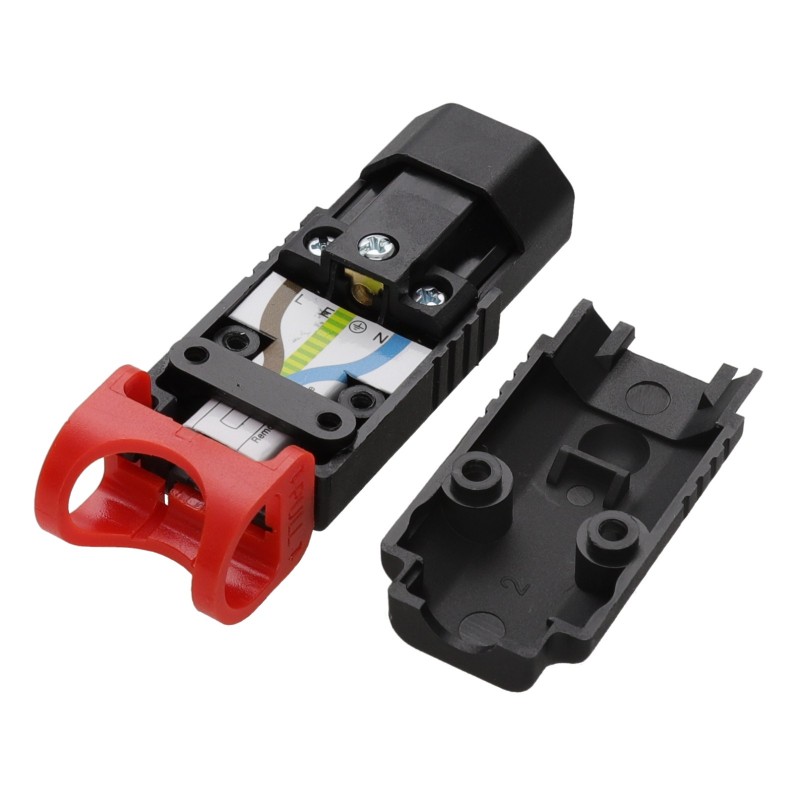

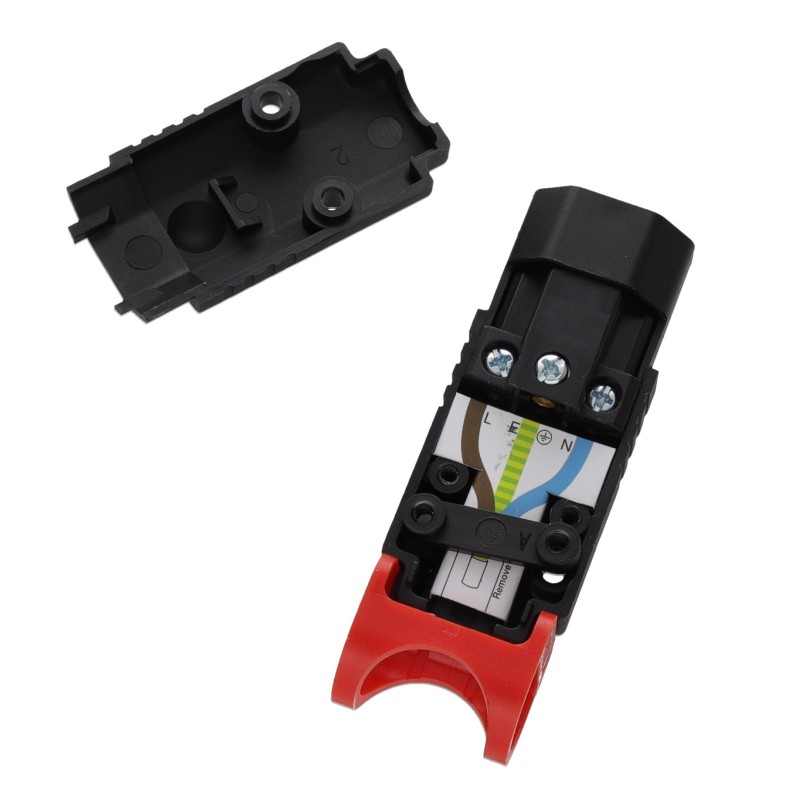

Rewireable connector
Fits any standard C14 inlet
Integral plug retention feature
Easy pull handle
100N withdrawal force


10A Max / 250V (Europe & Australia)
15A Max / 250V (USA) 125V / 250V (Japan)
Materials:
Outer Body & Chassis: Nylon (PA66) LSZH (RAL 9004 Signal Black)
Cable Restraint: Nylon (PA66)
Housing:

Screws & Cable Restraint Screws: Steel Nickel Plated
Lock Pivot Lever: Polycarbonate
Terminal Block & Sliding Terminal: Brass
Terminal Screws: Steel Yellow Passivated
Spring: Spring Steel
Locking Blade: Spring Steel Zinc Plated
Red Handle: Polycarbonate LSZH (RAL 3020 Traffic Light Red)

Terminal:
Capacity 3 Core 1.5mm Maximum 2.5mm Terminal Diameter Maximum Cable Diameter 8mm

Torque Value:
Terminal Screws 0.4Nm Strain Relief Clamping Screws 0.3Nm Dielectric Strength 1.5 kV Max
Withdrawal Force > 100N
Ambient Operating Temperature 25C
Flammability Rating Equivalent to UL94V-0

Protection Class:
Suitable for appliances with protection Class I according to IEC EN 61140

Features:
Rewireable
Fits any standard C14 inlet
Anti-Vibrate
Integral plug retention feature
Easy pull handle
Slotted and Cross head housing screws
Appliance inlet suitable for cold conditions
